Quadra-Fire Classic Bay 1200i Pellet Fireplace Insert

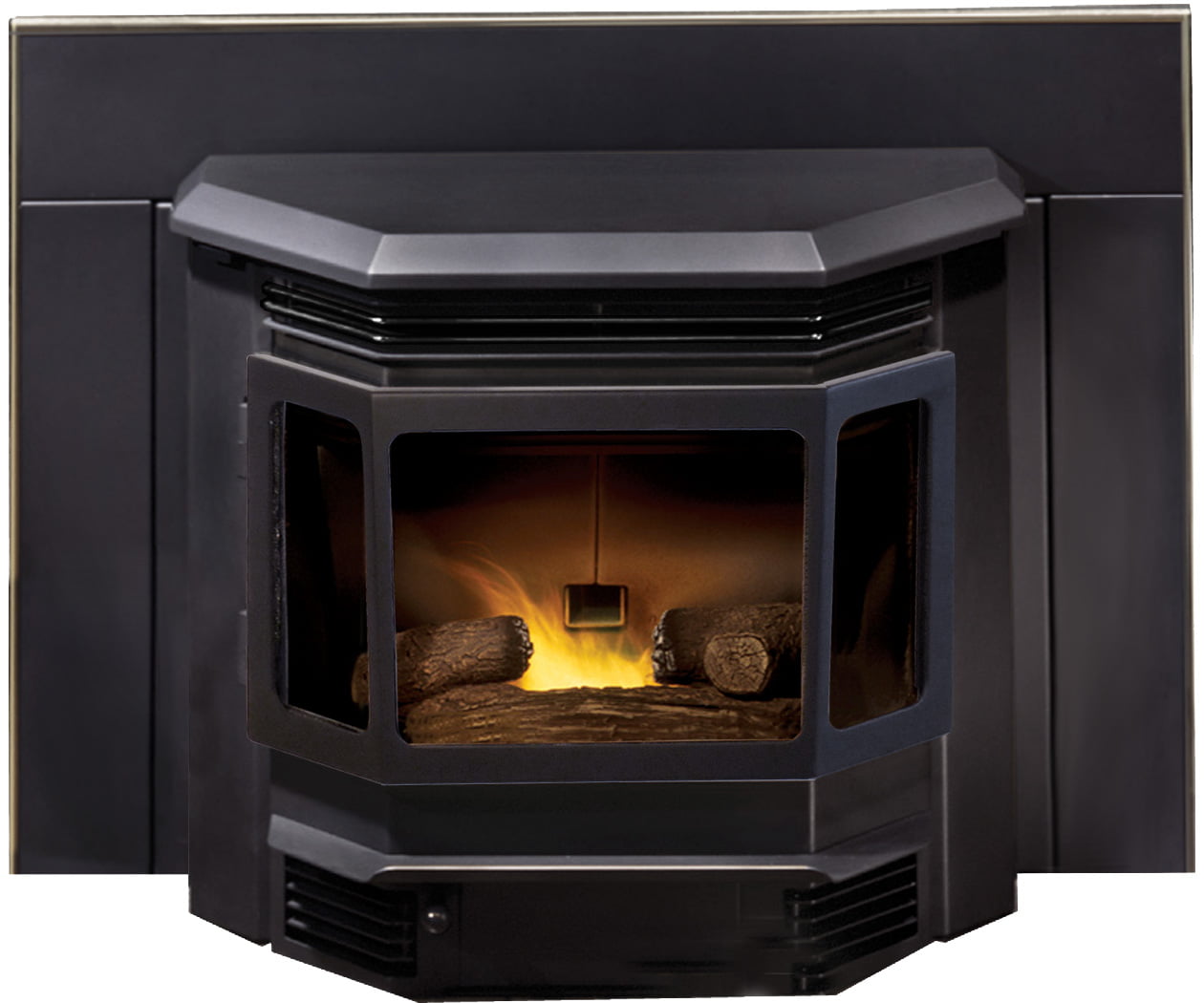

Shown with optional gold trim and log set.

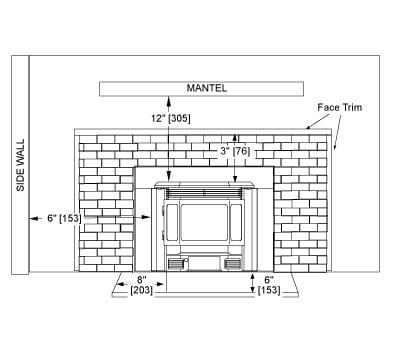

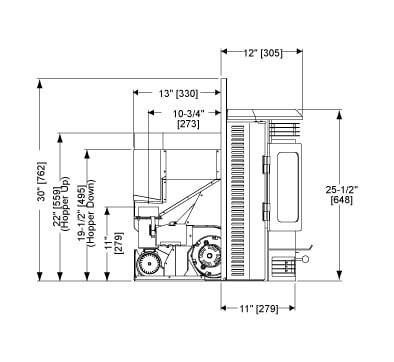

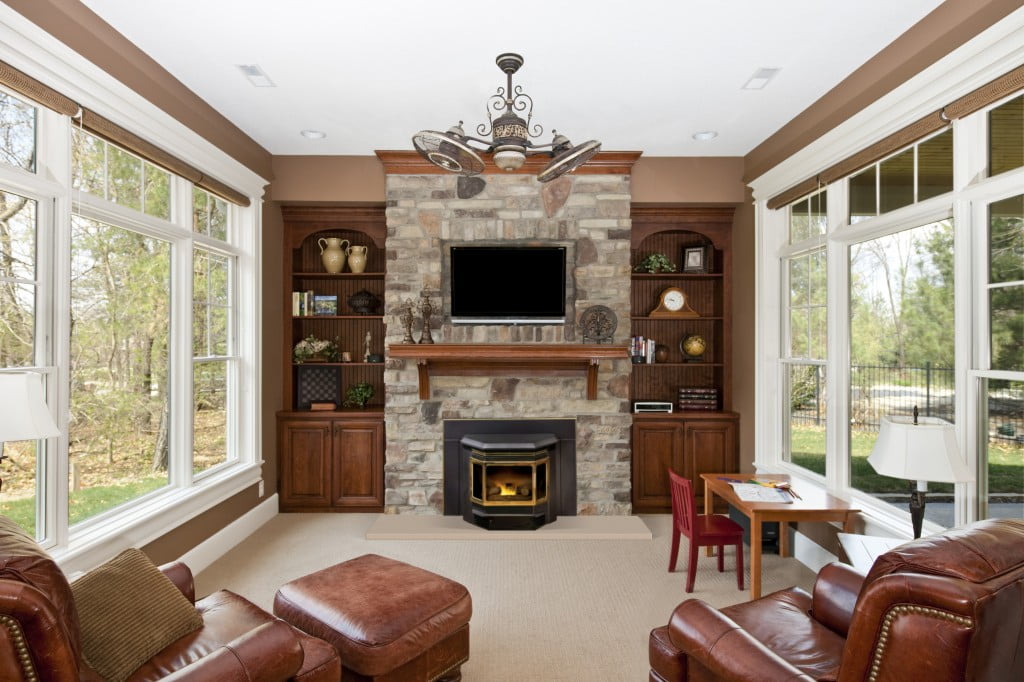

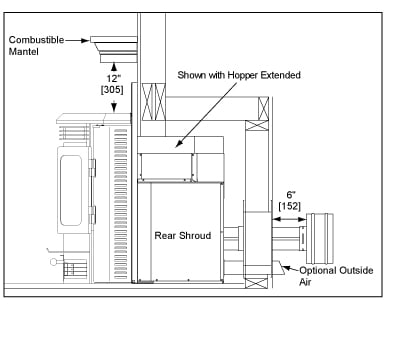

Classic Bay 1200i - MBK - color - highRes - PhotoClassic Bay 1200i - Gold - Color - High Res - PhotoShown with optional log set.Standard Wall ThermostatBattery Operated remote Control ThermostatSmart Stat Control (on-off, temp readout, thermostat mode, timer mode)7 Day ProgrammableFront ViewFront ClearancesSide ViewFirebox OpeningTop ViewBasic Clearances

Quadra-Fire Classic Bay 1200i Pellet Fireplace Insert

The Classic Bay 1200i delivers stunning flames and impressive performance—always on display through its large bay window. Superior technology helps the CB1200i produce powerful warmth, while remaining highly efficient.


1. Due to manufacturer restrictions, we are only able to sell new stoves in Wisconsin & Upper Michigan.

2. We are unable to provide pricing or quotes via email or phone. Every customer is ‘Price Protected’ for one full year on all new stove purchases. Best Price Guarantee – No worries. We have several convenient locations close to everyone we are allowed to serve.

Best Price Guarantee

Due to the custom nature of this product, we ask that you speak with one of our trained sales reps.

I'm Interested!


The Quadra-Fire Classic Bay 1200i has the ability of producing up to 47,300 BTU’s. Depending on climate and home efficiency, it will heat between 1,000 and 2,600 square feet. Large 75 lb. hopper capacity with a pull out ash tray. The Classic Bay 1200 insert is EPA Certified and has a patented feed system for jam-free operation. Cast iron E-Z Clean fire pot allows you to burn biomass fuels with minimal maintenance. The modern bay window styling of the 1200 allows maximum view of the fire and will be a centerpiece in any fireplace. The 1200 includes a wall mount thermostat in addition to manual controls (Optional alternative thermostat options are available). Black trim is standard, gold and satin nickel door and louver options are available. Earth Sense offers high temp painting services- choose from over 15 matte finishes!

Unit Front Width: 28-1/2 in.
Firebox Opening Front Width: 29-1/4 in.
Unit Rear Width: 22 in.
Firebox Opening Rear Width: 22 in.
Unit Front Height: 25-1/2 in.
Unit Height at Opening: 19-1/2 in.
Firebox Height at Opening: 19-1/2 in.
Unit Depth into Firebox: 13 in.
Firebox Depth into Firebox: 13 in.
Unit Depth into Hearth: 11 in.
Viewing Area: 13-7/8 x 11 in.
BTU/Hour Input: 47,300
Heating Capacity*: 1,000 – 2,600 sq ft.


*Dimensions for product images are in inches. Refer to installation/owner’s manual for detailed specifications on installing this product. Hearth & Home Technologies reserves the right to update units periodically. Product installation must adhere strictly to instructions shipped with product.

*Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the Owners Manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owners/installation manual.

*Heating capacity to be used as a guide only. See your local sales associate for help in determining the product that best suits your heating needs based on climate and home efficiency.
