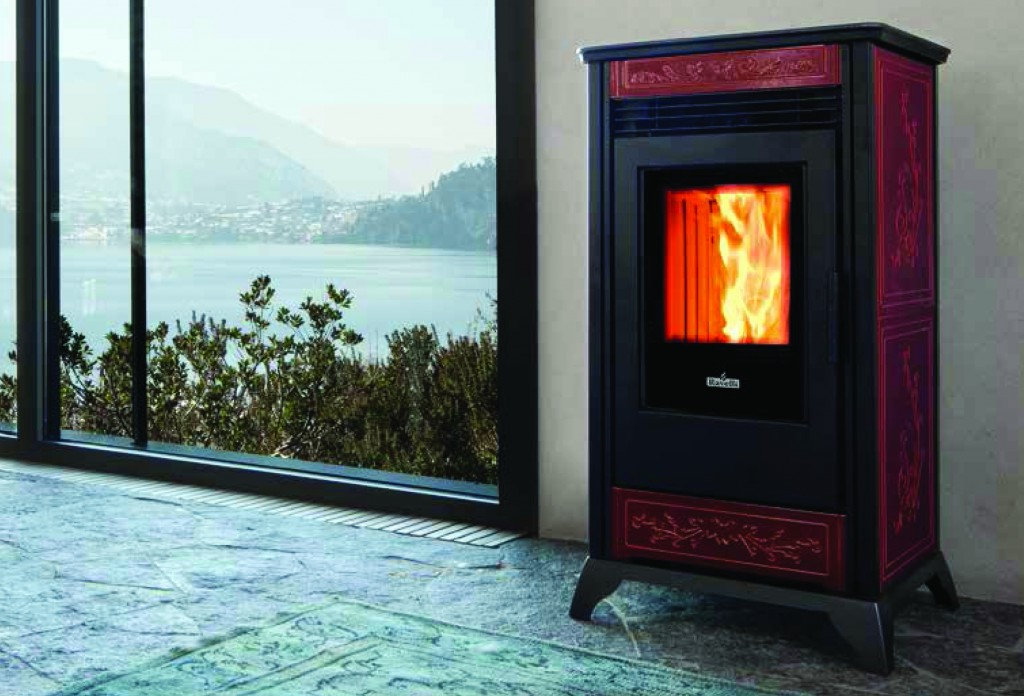

The Ravelli RV80 pellet stove is in a class all its own. Modern and elegant styling with three choices for color selection paired with state of the art design and superior craftsmanship. Welcome to the new generation of pellet stoves.
Due to the custom nature of this product, we ask that you speak with one of our trained sales reps.I'm Interested!
The Ravelli RV80 has the ability of producing up to 35,000 BTU’s. Depending on climate and home efficiency, it will heat between 700 and 1,800 square feet. 33 lb. hopper capacity with a pedestal pull out ash drawer. The Ravelli RV80 has a cast iron grate, cast iron burn pot and stainless steel heat exchanger for increased fire resistance and reduced wear. Loaded with state of the art electronics and controls the RV80 is one of the most consumer friendly pellet stoves on the market. Standard programmable wall mount thermostat in addition to graphic display controls and thermostat timer. Three factory panel color choices available to customize to your decor. Manufactured in Italy. Earth Sense offers high temp painting services- choose from over 15 matte finishes!
|Dimensions W x H x D (in.)
||20.2 – 39.0 – 19.1|
|Pellet fuel consumption per hour min/max (Lbs/h)||1.50 – 4.41|
|Efficiency (%)||> 82|
|Flue exit pipe (in.)||3.15|
|Hopper capacity (Lbs)||33|
|Burn Time min/max (h)||7.5 – 22.0|
|Installed Power (W)||290|
|Net Wight (Lbs)||250|
*Measures and data are indicative. The parent company reserves the right to make changes to its products at any time, without notice, for either technical or commercial reasons. Refer to installation/owner’s manual for detailed specifications on installing this product.
*Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the Owners Manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owners/installation manual.
*Heating capacity to be used as a guide only. See your local sales associate for help in determining the product that best suits your heating needs based on climate and home efficiency.
|Dimensions||21 x 20 x 40 in|
