Pellethead Replacement Klauber Power Gear Slide-Out Motor, 523900

$160.95

  Free Shipping On Orders over $75
*Includes Shipping On Parts and Accessory Orders in the Continental U.S. Only

The Highest Quality Replacement RV, Camper, and Motorhome Power Gear Slide-Out Motor for Klauber & Lippert. Guaranteed Best Price with Fast Free Shipping!

***2 Year Warranty***

6 in stock

SKU: 20535 Categories: ,

Frequently Bought Together

+
Price for both: $304.90
WC_Product_Simple Object
(
    [object_type:protected] => product
    [post_type:protected] => product
    [cache_group:protected] => products
    [data:protected] => Array
        (
            [name] => Pellethead Replacement Klauber Power Gear Slide-Out Motor, 523900
            [slug] => pellethead-replacement-klauber-power-gear-slide-out-motor-523900
            [date_created] => WC_DateTime Object
                (
                    [utc_offset:protected] => 0
                    [date] => 2023-06-09 10:55:51.000000
                    [timezone_type] => 3
                    [timezone] => America/Chicago
                )

            [date_modified] => WC_DateTime Object
                (
                    [utc_offset:protected] => 0
                    [date] => 2024-06-21 14:45:09.000000
                    [timezone_type] => 3
                    [timezone] => America/Chicago
                )

            [status] => publish
            [featured] =>
            [catalog_visibility] => visible
            [description] =>

Klauber Slide-Out Motor 523900

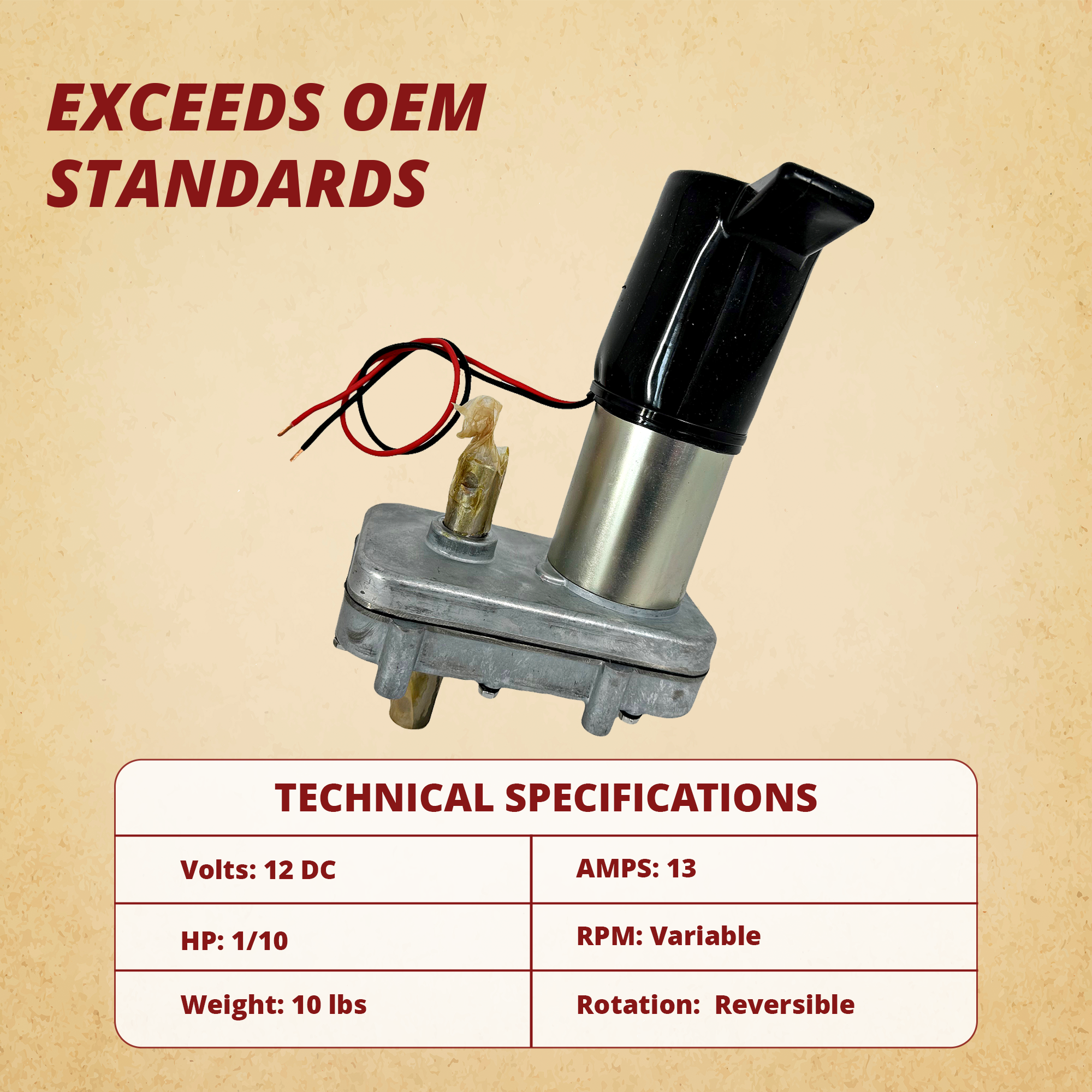

The Highest Quality Replacement RV, Camper, Motorhome Power Gear Slide-Out Motor for Klauber & Lippert. The motor is manufactured with 1/10 HP, 12 Volts DC, 13 AMPS, and a variation RPMs depending on the load. It's designed with a intermittent duty reversible rotation as well as a 12 VDC electro-mechanical brake on rear of motor with manual release lever. This part is designed to meet all measurement specifications to ensure optimum system performance, reliability, and easy installation/maintenance for a safe system operation. It provides an exact drop-in replacement without the OEM price! Be sure to cross-reference your current specs - including gear base/bolt and housing patterns- to ensure a proper replacement fit.
  • 12 RPM (no load)
  • 10 RPM - 400 in-lbs Torque
  • 6 RPM - 850 in-lbs Torque
  • Torque 850 in-lbs
  • Holding Torque 500 in-lbs.
  • Voltage 12 DC
  • Enclosure TENV

Guaranteed Newest Inventory!!

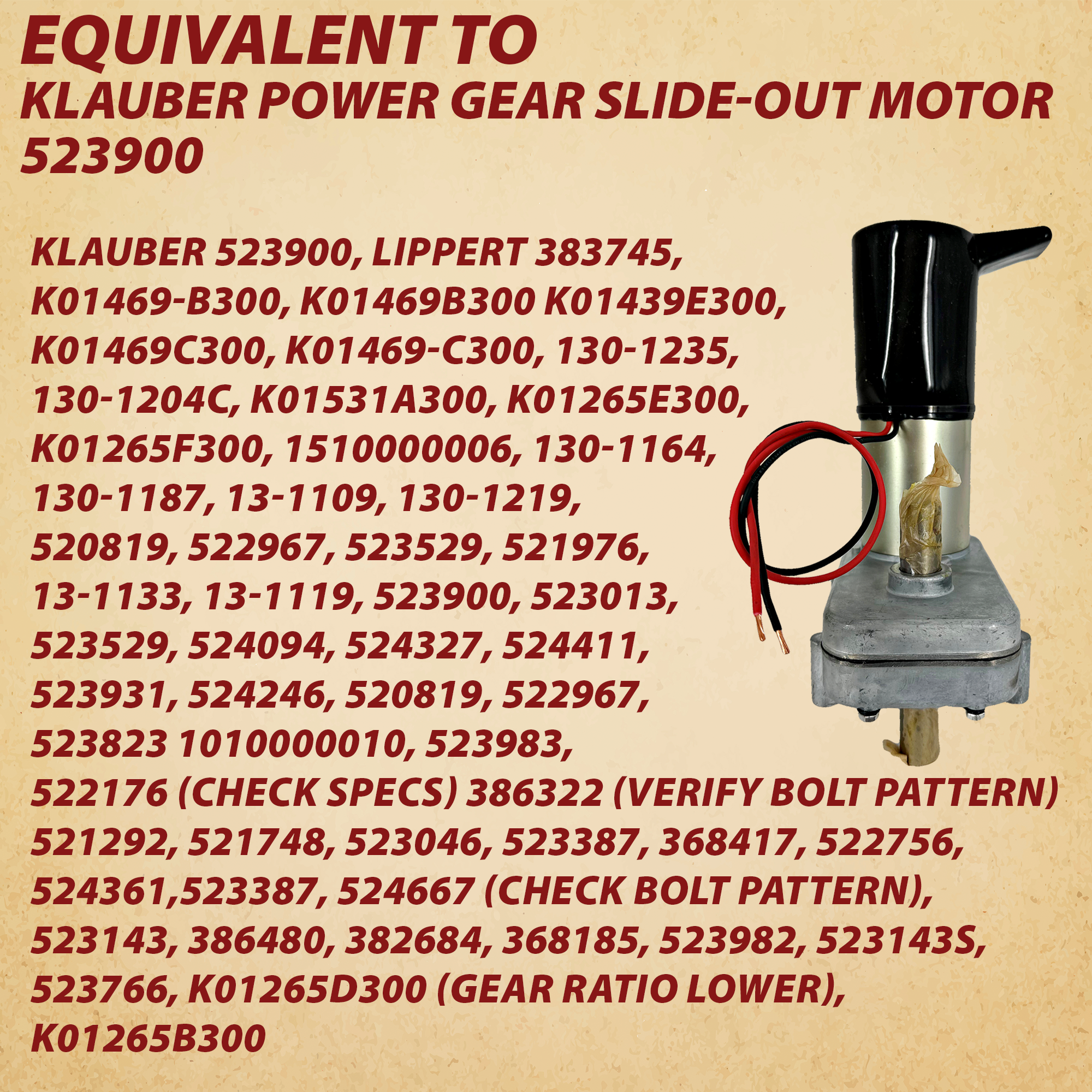

Equivalent to:
KLAUBER 523900, Lippert 383745 K01469-B300, K01469B300 K01439E300, K01469C300, K01469-C300, 130-1235, 130-1204c, K01531A300, K01265E300, K01265F300, 1510000006, 130-1164, 130-1187, 13-1109, 130-1219, 520819, 522967, 523529, 521976, 13-1133, 13-1119, 523900, 523013, 523529, 524094, 524327, 524411, 523931, 524246, 520819, 522967, 523823 1010000010, 523983, 522176 (check specs) 386322 (verify bolt pattern) 521292, 521748, 523046, 523387, 368417, 522756, 524361, 523387, 524667 (check bolt pattern/housing), 523143, 386480, 382684, 368185, 523982, 523143S, 523766, K01265D300 (Gear ratio lower), K01265B300.

Why Choose Pellethead?



On-Time Shipping

USA Retail Locations

Unmatched Warranty – No Hassles

Live Tech Support

Experience reliable and timely deliveries with our clearly exceptional on-time shipment rate, exceeding 99.5%. Enjoy lasting peace of mind by with our reliable and enduring online retail services. Our products are backed by our hassle-free warranty to guarantee your satisfaction. We offer tech support for every single product we sell. Have an issue or question:  Email us:  [email protected]

Experienced

Quality Affordable Parts

Pellethead Ash Vault Pro

Pellethead Smokin Po Boy

You can surely trust our three-decade expertise in pellet stoves for your definitive choice. Count on us for exceptional service, premium-quality parts, and optimal stove performance. Check out the only ash vacuum made decidedly by pellet stove professionals! Surely you want to cook pizza in only 3 minutes! Check out the Pellethead Smokin' Po Boy.
  Freedom Stoves [short_description] => The Highest Quality Replacement RV, Camper, and Motorhome Power Gear Slide-Out Motor for Klauber & Lippert. Guaranteed Best Price with Fast Free Shipping!

***2 Year Warranty***

[sku] => 20535 [price] => 160.95 [regular_price] => 160.95 [sale_price] => [date_on_sale_from] => [date_on_sale_to] => [total_sales] => 6 [tax_status] => taxable [tax_class] => [manage_stock] => 1 [stock_quantity] => 6 [stock_status] => instock [backorders] => no [low_stock_amount] => [sold_individually] => [weight] => 11 [length] => 11 [width] => 7 [height] => 6 [upsell_ids] => Array ( [0] => 146339 [1] => 146349 [2] => 146443 [3] => 146302 [4] => 146309 [5] => 146355 ) [cross_sell_ids] => Array ( [0] => 146302 ) [parent_id] => 0 [reviews_allowed] => [purchase_note] => [attributes] => Array ( [sizing] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => Sizing [options] => Array ( [0] => Size 9-1/4" x 3-7/8" x 6-1/4" Mount Four bolt face mount on 3.38" x 3.38"centers Dual Shafts 3/4" diam. x 1-1/4" with 1/4" crosshole (no keyway) ) [position] => 0 [visible] => 1 [variation] => ) ) [models] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => Models [options] => Array ( [0] => KLAUBER 523900, Lippert 383745 K01469-B300, K01469B300 K01439E300, K01469C300, K01469-C300, 130-1235, 130-1204c, K01531A300, K01265E300, K01265F300, 1510000006, 130-1164, 130-1187, 13-1109, 130-1219, 520819, 522967, 523529, 521976, 13-1133, 13-1119, 523900, 523013, 523529, 524094, 524327, 524411, 523931, 524246, 520819, 522967, 523823 1010000010, 523983, 522176 (check specs) 386322 (verify bolt pattern) 521292, 521748, 523046, 523387, 368417, 522756, 524361, 523387, 524667 (check bolt pattern/housing), 523143, 386480, 382684, 368185, 523982, 523143S, 523766, K01265D300 (Gear ratio lower), K01265B300. ) [position] => 1 [visible] => 1 [variation] => ) ) ) [default_attributes] => Array ( ) [menu_order] => 147 [post_password] => [virtual] => [downloadable] => [category_ids] => Array ( [0] => 62403 [1] => 72769 ) [tag_ids] => Array ( [0] => 76601 [1] => 73591 [2] => 76600 [3] => 76578 [4] => 76585 [5] => 76584 [6] => 76576 [7] => 76577 [8] => 76571 [9] => 76579 [10] => 76570 [11] => 76575 [12] => 76550 [13] => 76554 [14] => 76563 [15] => 76553 [16] => 76596 [17] => 76567 [18] => 76552 [19] => 76580 [20] => 76559 [21] => 76560 [22] => 76583 [23] => 76595 [24] => 76564 [25] => 76581 [26] => 76587 [27] => 76561 [28] => 76551 [29] => 76556 [30] => 76562 [31] => 76582 [32] => 76557 [33] => 76593 [34] => 76586 [35] => 76591 [36] => 76555 [37] => 76594 [38] => 76588 [39] => 76592 [40] => 76589 [41] => 76565 [42] => 76590 [43] => 76566 [44] => 76606 [45] => 72568 [46] => 76599 [47] => 76558 [48] => 76573 [49] => 76574 [50] => 76569 [51] => 76597 [52] => 76568 [53] => 76572 [54] => 76598 [55] => 76602 [56] => 76603 [57] => 76604 [58] => 76605 [59] => 72241 [60] => 72216 ) [shipping_class_id] => 0 [downloads] => Array ( ) [image_id] => 148348 [gallery_image_ids] => Array ( [0] => 163714 [1] => 163715 [2] => 163716 [3] => 163713 ) [download_limit] => -1 [download_expiry] => -1 [rating_counts] => Array ( ) [average_rating] => 0 [review_count] => 0 ) [supports:protected] => Array ( [0] => ajax_add_to_cart ) [id:protected] => 148344 [changes:protected] => Array ( ) [object_read:protected] => 1 [extra_data:protected] => Array ( ) [default_data:protected] => Array ( [name] => [slug] => [date_created] => [date_modified] => [status] => [featured] => [catalog_visibility] => visible [description] => [short_description] => [sku] => [price] => [regular_price] => [sale_price] => [date_on_sale_from] => [date_on_sale_to] => [total_sales] => 0 [tax_status] => taxable [tax_class] => [manage_stock] => [stock_quantity] => [stock_status] => instock [backorders] => no [low_stock_amount] => [sold_individually] => [weight] => [length] => [width] => [height] => [upsell_ids] => Array ( ) [cross_sell_ids] => Array ( ) [parent_id] => 0 [reviews_allowed] => 1 [purchase_note] => [attributes] => Array ( ) [default_attributes] => Array ( ) [menu_order] => 0 [post_password] => [virtual] => [downloadable] => [category_ids] => Array ( ) [tag_ids] => Array ( ) [shipping_class_id] => 0 [downloads] => Array ( ) [image_id] => [gallery_image_ids] => Array ( ) [download_limit] => -1 [download_expiry] => -1 [rating_counts] => Array ( ) [average_rating] => 0 [review_count] => 0 ) [data_store:protected] => WC_Data_Store Object ( [instance:WC_Data_Store:private] => WC_Product_Data_Store_CPT Object ( [internal_meta_keys:protected] => Array ( [0] => _visibility [1] => _sku [2] => _price [3] => _regular_price [4] => _sale_price [5] => _sale_price_dates_from [6] => _sale_price_dates_to [7] => total_sales [8] => _tax_status [9] => _tax_class [10] => _manage_stock [11] => _stock [12] => _stock_status [13] => _backorders [14] => _low_stock_amount [15] => _sold_individually [16] => _weight [17] => _length [18] => _width [19] => _height [20] => _upsell_ids [21] => _crosssell_ids [22] => _purchase_note [23] => _default_attributes [24] => _product_attributes [25] => _virtual [26] => _downloadable [27] => _download_limit [28] => _download_expiry [29] => _featured [30] => _downloadable_files [31] => _wc_rating_count [32] => _wc_average_rating [33] => _wc_review_count [34] => _variation_description [35] => _thumbnail_id [36] => _file_paths [37] => _product_image_gallery [38] => _product_version [39] => _wp_old_slug [40] => _edit_last [41] => _edit_lock ) [must_exist_meta_keys:protected] => Array ( [0] => _tax_class ) [extra_data_saved:protected] => [updated_props:protected] => Array ( ) [meta_type:protected] => post [object_id_field_for_meta:protected] => ) [stores:WC_Data_Store:private] => Array ( [coupon] => WC_Coupon_Data_Store_CPT [customer] => WC_Customer_Data_Store [customer-download] => WC_Customer_Download_Data_Store [customer-download-log] => WC_Customer_Download_Log_Data_Store [customer-session] => WC_Customer_Data_Store_Session [order] => WC_Order_Data_Store_CPT [order-refund] => WC_Order_Refund_Data_Store_CPT [order-item] => WC_Order_Item_Data_Store [order-item-coupon] => WC_Order_Item_Coupon_Data_Store [order-item-fee] => WC_Order_Item_Fee_Data_Store [order-item-product] => WC_Order_Item_Product_Data_Store [order-item-shipping] => WC_Order_Item_Shipping_Data_Store [order-item-tax] => WC_Order_Item_Tax_Data_Store [payment-token] => WC_Payment_Token_Data_Store [product] => WC_Product_Data_Store_CPT [product-grouped] => WC_Product_Grouped_Data_Store_CPT [product-variable] => WC_Product_Variable_Data_Store_CPT [product-variation] => WC_Product_Variation_Data_Store_CPT [shipping-zone] => WC_Shipping_Zone_Data_Store [webhook] => WC_Webhook_Data_Store [report-revenue-stats] => Automattic\WooCommerce\Admin\API\Reports\Orders\Stats\DataStore [report-orders] => Automattic\WooCommerce\Admin\API\Reports\Orders\DataStore [report-orders-stats] => Automattic\WooCommerce\Admin\API\Reports\Orders\Stats\DataStore [report-products] => Automattic\WooCommerce\Admin\API\Reports\Products\DataStore [report-variations] => Automattic\WooCommerce\Admin\API\Reports\Variations\DataStore [report-products-stats] => Automattic\WooCommerce\Admin\API\Reports\Products\Stats\DataStore [report-variations-stats] => Automattic\WooCommerce\Admin\API\Reports\Variations\Stats\DataStore [report-categories] => Automattic\WooCommerce\Admin\API\Reports\Categories\DataStore [report-taxes] => Automattic\WooCommerce\Admin\API\Reports\Taxes\DataStore [report-taxes-stats] => Automattic\WooCommerce\Admin\API\Reports\Taxes\Stats\DataStore [report-coupons] => Automattic\WooCommerce\Admin\API\Reports\Coupons\DataStore [report-coupons-stats] => Automattic\WooCommerce\Admin\API\Reports\Coupons\Stats\DataStore [report-downloads] => Automattic\WooCommerce\Admin\API\Reports\Downloads\DataStore [report-downloads-stats] => Automattic\WooCommerce\Admin\API\Reports\Downloads\Stats\DataStore [admin-note] => Automattic\WooCommerce\Admin\Notes\DataStore [report-customers] => Automattic\WooCommerce\Admin\API\Reports\Customers\DataStore [report-customers-stats] => Automattic\WooCommerce\Admin\API\Reports\Customers\Stats\DataStore [report-stock-stats] => Automattic\WooCommerce\Admin\API\Reports\Stock\Stats\DataStore ) [current_class_name:WC_Data_Store:private] => WC_Product_Data_Store_CPT [object_type:WC_Data_Store:private] => product-simple ) [meta_data:protected] => )

Description

Klauber Slide-Out Motor 523900

The Highest Quality Replacement RV, Camper, Motorhome Power Gear Slide-Out Motor for Klauber & Lippert. The motor is manufactured with 1/10 HP, 12 Volts DC, 13 AMPS, and a variation RPMs depending on the load. It’s designed with a intermittent duty reversible rotation as well as a 12 VDC electro-mechanical brake on rear of motor with manual release lever. This part is designed to meet all measurement specifications to ensure optimum system performance, reliability, and easy installation/maintenance for a safe system operation. It provides an exact drop-in replacement without the OEM price! Be sure to cross-reference your current specs – including gear base/bolt and housing patterns- to ensure a proper replacement fit.

  • 12 RPM (no load)
  • 10 RPM – 400 in-lbs Torque
  • 6 RPM – 850 in-lbs Torque
  • Torque 850 in-lbs
  • Holding Torque 500 in-lbs.
  • Voltage 12 DC
  • Enclosure TENV

Guaranteed Newest Inventory!!



Equivalent to:

KLAUBER 523900, Lippert 383745 K01469-B300, K01469B300 K01439E300, K01469C300, K01469-C300, 130-1235, 130-1204c, K01531A300, K01265E300, K01265F300, 1510000006, 130-1164, 130-1187, 13-1109, 130-1219, 520819, 522967, 523529, 521976, 13-1133, 13-1119, 523900, 523013, 523529, 524094, 524327, 524411, 523931, 524246, 520819, 522967, 523823 1010000010, 523983, 522176 (check specs) 386322 (verify bolt pattern) 521292, 521748, 523046, 523387, 368417, 522756, 524361, 523387, 524667 (check bolt pattern/housing), 523143, 386480, 382684, 368185, 523982, 523143S, 523766, K01265D300 (Gear ratio lower), K01265B300.

Why Choose Pellethead?



On-Time Shipping

USA Retail Locations

Unmatched Warranty – No Hassles

Live Tech Support

Experience reliable and timely deliveries with our clearly exceptional on-time shipment rate, exceeding 99.5%. Enjoy lasting peace of mind by with our reliable and enduring online retail services. Our products are backed by our hassle-free warranty to guarantee your satisfaction. We offer tech support for every single product we sell. Have an issue or question:  Email us:  [email protected]

Experienced

Quality Affordable Parts

Pellethead Ash Vault Pro

Pellethead Smokin Po Boy

You can surely trust our three-decade expertise in pellet stoves for your definitive choice. Count on us for exceptional service, premium-quality parts, and optimal stove performance. Check out the only ash vacuum made decidedly by pellet stove professionals! Surely you want to cook pizza in only 3 minutes! Check out the Pellethead Smokin’ Po Boy.



Freedom Stoves

Specs

Sizing Size 9-1/4" x 3-7/8" x 6-1/4" Mount Four bolt face mount on 3.38" x 3.38"centers Dual Shafts 3/4" diam. x 1-1/4" with 1/4" crosshole (no keyway)
Models KLAUBER 523900, Lippert 383745 K01469-B300, K01469B300 K01439E300, K01469C300, K01469-C300, 130-1235, 130-1204c, K01531A300, K01265E300, K01265F300, 1510000006, 130-1164, 130-1187, 13-1109, 130-1219, 520819, 522967, 523529, 521976, 13-1133, 13-1119, 523900, 523013, 523529, 524094, 524327, 524411, 523931, 524246, 520819, 522967, 523823 1010000010, 523983, 522176 (check specs) 386322 (verify bolt pattern) 521292, 521748, 523046, 523387, 368417, 522756, 524361, 523387, 524667 (check bolt pattern/housing), 523143, 386480, 382684, 368185, 523982, 523143S, 523766, K01265D300 (Gear ratio lower), K01265B300.

Models
