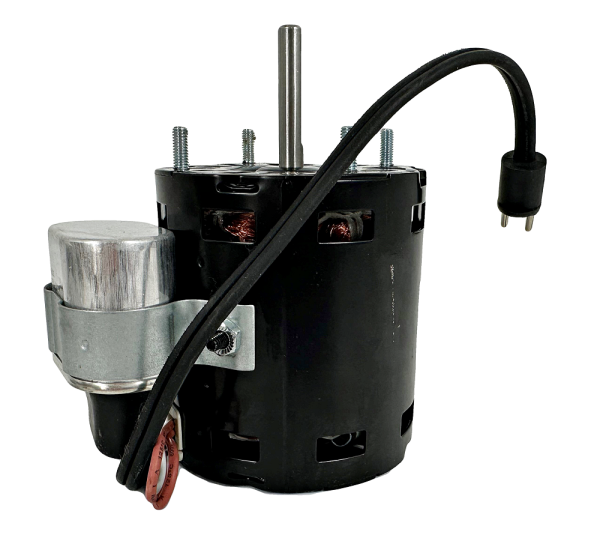

Pellethead Replacement Fasco D1122 PSC Motor, 1/16 HP, 1300/1650 RPM, CWSE 3.3″ Diameter, 208-230V (Heatcraft)

$62.00

  Free Shipping On Orders over $75
*Includes Shipping On Parts and Accessory Orders in the Continental U.S. Only

Highest Quality PSC HVAC/ Refrigeration Condenser Fan Motor. Replaces Heatcraft 7190-2255, 7190-2990, 25308601, Fasco D1122, and Dayton 48GN45. Guaranteed Best Price with Fastest Shipping!

4 in stock

SKU: 7190-2255 | 7190-2990 | 25308601 | 48GN45 | D1122 | 20508 Categories: , ,

Frequently Bought Together

+
Price for both: $121.40
WC_Product_Simple Object
(
    [object_type:protected] => product
    [post_type:protected] => product
    [cache_group:protected] => products
    [data:protected] => Array
        (
            [name] => Pellethead Replacement Fasco D1122 PSC Motor, 1/16 HP, 1300/1650 RPM, CWSE 3.3" Diameter, 208-230V (Heatcraft)
            [slug] => pellethead-replacement-psc-condenser-fan-motor-1-16-hp-1650-rpm
            [date_created] => WC_DateTime Object
                (
                    [utc_offset:protected] => 0
                    [date] => 2023-05-17 13:06:31.000000
                    [timezone_type] => 3
                    [timezone] => America/Chicago
                )

            [date_modified] => WC_DateTime Object
                (
                    [utc_offset:protected] => 0
                    [date] => 2024-07-19 15:05:41.000000
                    [timezone_type] => 3
                    [timezone] => America/Chicago
                )

            [status] => publish
            [featured] =>
            [catalog_visibility] => visible
            [description] =>

Replacement Fasco D1122 PSC motor

Highest quality ball bearing replacement Fasco D1122 PSC HVAC/Refrigeration fan motor. This motor will be a direct replacement for Fasco D1122, Heatcraft 7190-2255, 7190-2990, 25308601, and Dayton 48GN45 Sku's. This motor is used in several applications including HVAC condenser fans, commercial coolers including evaporative coolers, walk-in coolers, and display case coolers. This motor is also a common replacement for refrigeration and refrigeration fan systems. Electrical specifications will be Phase 1, 1/16 Horsepower, 1300/1650 RPM, 208-230/220V, 0.45-0.4/0,05 Amps, and 60/50hz. Be sure to double check your motor specs prior to ordering to ensure this is the correct replacement.

Overview

  • 1/16 HP, 1300/1650 RPM, 0.45-0.4/0.50 Amps, 208-230/220V, 60/50hz.
  • Output KW: 0.04 kW
  • Shaft: 5/16" x 1-5/8"
  • Rotation: CWSE
  • Motor Case/Shell Length: 3-5/8"
  • 3.3" Diameter Motor
  • Ball Bearings
  • Permanent Split Capacitor (PSC); Capacitor Required: 2 Mfd-370 Volts (Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Belly Band Mount or Stud Mount - 4 mounting studs on the end of the shaft

Why Choose Pellethead?



On-Time Shipping

USA Retail Locations

Unmatched Warranty – No Hassles

Live Tech Support

Experience reliable and timely deliveries with our clearly exceptional on-time shipment rate, exceeding 99.5%. Enjoy lasting peace of mind by with our reliable and enduring online retail services. Our products are backed by our hassle-free warranty to guarantee your satisfaction. We offer tech support for every single product we sell. Have an issue or question:  Email us:  [email protected]

Experienced

Quality Affordable Parts

Pellethead Ash Vault Pro

Pellethead Smokin Po Boy

You can surely trust our three-decade expertise in pellet stoves for your definitive choice. Count on us for exceptional service, premium-quality parts, and optimal stove performance. Check out the only ash vacuum made decidedly by pellet stove professionals! Surely you want to cook pizza in only 3 minutes! Check out the Pellethead Smokin' Po Boy.
  [short_description] => Highest Quality PSC HVAC/ Refrigeration Condenser Fan Motor. Replaces Heatcraft 7190-2255, 7190-2990, 25308601, Fasco D1122, and Dayton 48GN45. Guaranteed Best Price with Fastest Shipping! [sku] => 7190-2255 | 7190-2990 | 25308601 | 48GN45 | D1122 | 20508 [price] => 62.00 [regular_price] => 62.00 [sale_price] => [date_on_sale_from] => [date_on_sale_to] => [total_sales] => 0 [tax_status] => taxable [tax_class] => [manage_stock] => 1 [stock_quantity] => 4 [stock_status] => instock [backorders] => no [low_stock_amount] => [sold_individually] => [weight] => 4.2 [length] => 10 [width] => 10 [height] => 8 [upsell_ids] => Array ( [0] => 126903 [1] => 126907 [2] => 127000 [3] => 147913 [4] => 148051 [5] => 147918 ) [cross_sell_ids] => Array ( [0] => 128730 [1] => 147908 [2] => 126903 [3] => 126941 [4] => 147552 [5] => 126985 ) [parent_id] => 0 [reviews_allowed] => [purchase_note] => [attributes] => Array ( [measurements] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => Measurements [options] => Array ( [0] => Shaft: 5/16" x 1-5/8", Motor Case Length: 3-5/8", 3.3" Diameter Motor, Rotation: CWSE. ) [position] => 0 [visible] => 1 [variation] => ) ) [electrical] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => Electrical [options] => Array ( [0] => 1/16 HP, 1300/1650 RPM, 0.45-0.4/0.50 Amps, 208-230/220V, 60/50hz. Output KW: 0.04 kW. Permanent Split Capacitor (PSC); Capacitor Required: 2 Mfd-370 Volts (Supplied with Motor). ) [position] => 1 [visible] => 1 [variation] => ) ) ) [default_attributes] => Array ( ) [menu_order] => 232 [post_password] => [virtual] => [downloadable] => [category_ids] => Array ( [0] => 79 [1] => 62079 [2] => 75080 ) [tag_ids] => Array ( [0] => 81123 [1] => 81114 [2] => 74795 [3] => 74799 [4] => 74798 [5] => 81130 [6] => 62332 [7] => 62253 [8] => 81115 [9] => 81126 [10] => 81128 [11] => 81127 [12] => 81129 [13] => 81132 [14] => 81131 [15] => 81124 [16] => 81125 [17] => 74802 [18] => 81122 [19] => 81135 [20] => 74809 [21] => 48810 [22] => 81117 [23] => 74801 [24] => 74797 [25] => 74800 [26] => 74807 [27] => 74796 [28] => 81112 [29] => 81133 [30] => 48813 [31] => 81113 [32] => 74805 [33] => 81121 [34] => 74803 [35] => 81118 [36] => 74804 [37] => 81120 [38] => 74808 [39] => 81134 [40] => 81119 [41] => 81116 [42] => 62257 [43] => 81137 [44] => 62254 [45] => 74810 [46] => 74806 [47] => 81136 [48] => 62797 ) [shipping_class_id] => 0 [downloads] => Array ( ) [image_id] => 147470 [gallery_image_ids] => Array ( [0] => 147467 [1] => 147469 [2] => 147468 ) [download_limit] => -1 [download_expiry] => -1 [rating_counts] => Array ( ) [average_rating] => 0 [review_count] => 0 ) [supports:protected] => Array ( [0] => ajax_add_to_cart ) [id:protected] => 147466 [changes:protected] => Array ( ) [object_read:protected] => 1 [extra_data:protected] => Array ( ) [default_data:protected] => Array ( [name] => [slug] => [date_created] => [date_modified] => [status] => [featured] => [catalog_visibility] => visible [description] => [short_description] => [sku] => [price] => [regular_price] => [sale_price] => [date_on_sale_from] => [date_on_sale_to] => [total_sales] => 0 [tax_status] => taxable [tax_class] => [manage_stock] => [stock_quantity] => [stock_status] => instock [backorders] => no [low_stock_amount] => [sold_individually] => [weight] => [length] => [width] => [height] => [upsell_ids] => Array ( ) [cross_sell_ids] => Array ( ) [parent_id] => 0 [reviews_allowed] => 1 [purchase_note] => [attributes] => Array ( ) [default_attributes] => Array ( ) [menu_order] => 0 [post_password] => [virtual] => [downloadable] => [category_ids] => Array ( ) [tag_ids] => Array ( ) [shipping_class_id] => 0 [downloads] => Array ( ) [image_id] => [gallery_image_ids] => Array ( ) [download_limit] => -1 [download_expiry] => -1 [rating_counts] => Array ( ) [average_rating] => 0 [review_count] => 0 ) [data_store:protected] => WC_Data_Store Object ( [instance:WC_Data_Store:private] => WC_Product_Data_Store_CPT Object ( [internal_meta_keys:protected] => Array ( [0] => _visibility [1] => _sku [2] => _price [3] => _regular_price [4] => _sale_price [5] => _sale_price_dates_from [6] => _sale_price_dates_to [7] => total_sales [8] => _tax_status [9] => _tax_class [10] => _manage_stock [11] => _stock [12] => _stock_status [13] => _backorders [14] => _low_stock_amount [15] => _sold_individually [16] => _weight [17] => _length [18] => _width [19] => _height [20] => _upsell_ids [21] => _crosssell_ids [22] => _purchase_note [23] => _default_attributes [24] => _product_attributes [25] => _virtual [26] => _downloadable [27] => _download_limit [28] => _download_expiry [29] => _featured [30] => _downloadable_files [31] => _wc_rating_count [32] => _wc_average_rating [33] => _wc_review_count [34] => _variation_description [35] => _thumbnail_id [36] => _file_paths [37] => _product_image_gallery [38] => _product_version [39] => _wp_old_slug [40] => _edit_last [41] => _edit_lock ) [must_exist_meta_keys:protected] => Array ( [0] => _tax_class ) [extra_data_saved:protected] => [updated_props:protected] => Array ( ) [meta_type:protected] => post [object_id_field_for_meta:protected] => ) [stores:WC_Data_Store:private] => Array ( [coupon] => WC_Coupon_Data_Store_CPT [customer] => WC_Customer_Data_Store [customer-download] => WC_Customer_Download_Data_Store [customer-download-log] => WC_Customer_Download_Log_Data_Store [customer-session] => WC_Customer_Data_Store_Session [order] => WC_Order_Data_Store_CPT [order-refund] => WC_Order_Refund_Data_Store_CPT [order-item] => WC_Order_Item_Data_Store [order-item-coupon] => WC_Order_Item_Coupon_Data_Store [order-item-fee] => WC_Order_Item_Fee_Data_Store [order-item-product] => WC_Order_Item_Product_Data_Store [order-item-shipping] => WC_Order_Item_Shipping_Data_Store [order-item-tax] => WC_Order_Item_Tax_Data_Store [payment-token] => WC_Payment_Token_Data_Store [product] => WC_Product_Data_Store_CPT [product-grouped] => WC_Product_Grouped_Data_Store_CPT [product-variable] => WC_Product_Variable_Data_Store_CPT [product-variation] => WC_Product_Variation_Data_Store_CPT [shipping-zone] => WC_Shipping_Zone_Data_Store [webhook] => WC_Webhook_Data_Store [report-revenue-stats] => Automattic\WooCommerce\Admin\API\Reports\Orders\Stats\DataStore [report-orders] => Automattic\WooCommerce\Admin\API\Reports\Orders\DataStore [report-orders-stats] => Automattic\WooCommerce\Admin\API\Reports\Orders\Stats\DataStore [report-products] => Automattic\WooCommerce\Admin\API\Reports\Products\DataStore [report-variations] => Automattic\WooCommerce\Admin\API\Reports\Variations\DataStore [report-products-stats] => Automattic\WooCommerce\Admin\API\Reports\Products\Stats\DataStore [report-variations-stats] => Automattic\WooCommerce\Admin\API\Reports\Variations\Stats\DataStore [report-categories] => Automattic\WooCommerce\Admin\API\Reports\Categories\DataStore [report-taxes] => Automattic\WooCommerce\Admin\API\Reports\Taxes\DataStore [report-taxes-stats] => Automattic\WooCommerce\Admin\API\Reports\Taxes\Stats\DataStore [report-coupons] => Automattic\WooCommerce\Admin\API\Reports\Coupons\DataStore [report-coupons-stats] => Automattic\WooCommerce\Admin\API\Reports\Coupons\Stats\DataStore [report-downloads] => Automattic\WooCommerce\Admin\API\Reports\Downloads\DataStore [report-downloads-stats] => Automattic\WooCommerce\Admin\API\Reports\Downloads\Stats\DataStore [admin-note] => Automattic\WooCommerce\Admin\Notes\DataStore [report-customers] => Automattic\WooCommerce\Admin\API\Reports\Customers\DataStore [report-customers-stats] => Automattic\WooCommerce\Admin\API\Reports\Customers\Stats\DataStore [report-stock-stats] => Automattic\WooCommerce\Admin\API\Reports\Stock\Stats\DataStore ) [current_class_name:WC_Data_Store:private] => WC_Product_Data_Store_CPT [object_type:WC_Data_Store:private] => product-simple ) [meta_data:protected] => )

Description

Replacement Fasco D1122 PSC motor

Highest quality ball bearing replacement Fasco D1122 PSC HVAC/Refrigeration fan motor. This motor will be a direct replacement for Fasco D1122, Heatcraft 7190-2255, 7190-2990, 25308601, and Dayton 48GN45 Sku’s. This motor is used in several applications including HVAC condenser fans, commercial coolers including evaporative coolers, walk-in coolers, and display case coolers. This motor is also a common replacement for refrigeration and refrigeration fan systems. Electrical specifications will be Phase 1, 1/16 Horsepower, 1300/1650 RPM, 208-230/220V, 0.45-0.4/0,05 Amps, and 60/50hz. Be sure to double check your motor specs prior to ordering to ensure this is the correct replacement.

Overview

  • 1/16 HP, 1300/1650 RPM, 0.45-0.4/0.50 Amps, 208-230/220V, 60/50hz.
  • Output KW: 0.04 kW
  • Shaft: 5/16″ x 1-5/8″
  • Rotation: CWSE
  • Motor Case/Shell Length: 3-5/8″
  • 3.3″ Diameter Motor
  • Ball Bearings
  • Permanent Split Capacitor (PSC); Capacitor Required: 2 Mfd-370 Volts (Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Belly Band Mount or Stud Mount – 4 mounting studs on the end of the shaft

Why Choose Pellethead?



On-Time Shipping

USA Retail Locations

Unmatched Warranty – No Hassles

Live Tech Support

Experience reliable and timely deliveries with our clearly exceptional on-time shipment rate, exceeding 99.5%. Enjoy lasting peace of mind by with our reliable and enduring online retail services. Our products are backed by our hassle-free warranty to guarantee your satisfaction. We offer tech support for every single product we sell. Have an issue or question:  Email us:  [email protected]

Experienced

Quality Affordable Parts

Pellethead Ash Vault Pro

Pellethead Smokin Po Boy

You can surely trust our three-decade expertise in pellet stoves for your definitive choice. Count on us for exceptional service, premium-quality parts, and optimal stove performance. Check out the only ash vacuum made decidedly by pellet stove professionals! Surely you want to cook pizza in only 3 minutes! Check out the Pellethead Smokin’ Po Boy.



Specs

Measurements Shaft: 5/16" x 1-5/8", Motor Case Length: 3-5/8", 3.3" Diameter Motor, Rotation: CWSE.
Electrical 1/16 HP, 1300/1650 RPM, 0.45-0.4/0.50 Amps, 208-230/220V, 60/50hz. Output KW: 0.04 kW. Permanent Split Capacitor (PSC); Capacitor Required: 2 Mfd-370 Volts (Supplied with Motor).

Models

Models

  • Heatcraft 7190-2255, 7190-2990, 25308601, Fasco D1122, and Dayton 48GN45 Sku’s.
  • Double Check Your Motor Specs Prior to Ordering.

Our Guarantee:

  • 100% Best Price Guarantee
  • 100% Satisfaction Guarantee
  • 100% On-Time Shipping Commitment
  • Returns accepted within 30 days on products not used or installed

Over 30 years of trusted value and commitment to customers.
