Replacement AO Smith 3-Speed 1650RPM 115V 1/5HP A/C Motor, ORV4540 REFURB

$152.00

  Free Shipping On Orders over $75
*Includes Shipping On Parts and Accessory Orders in the Continental U.S. Only

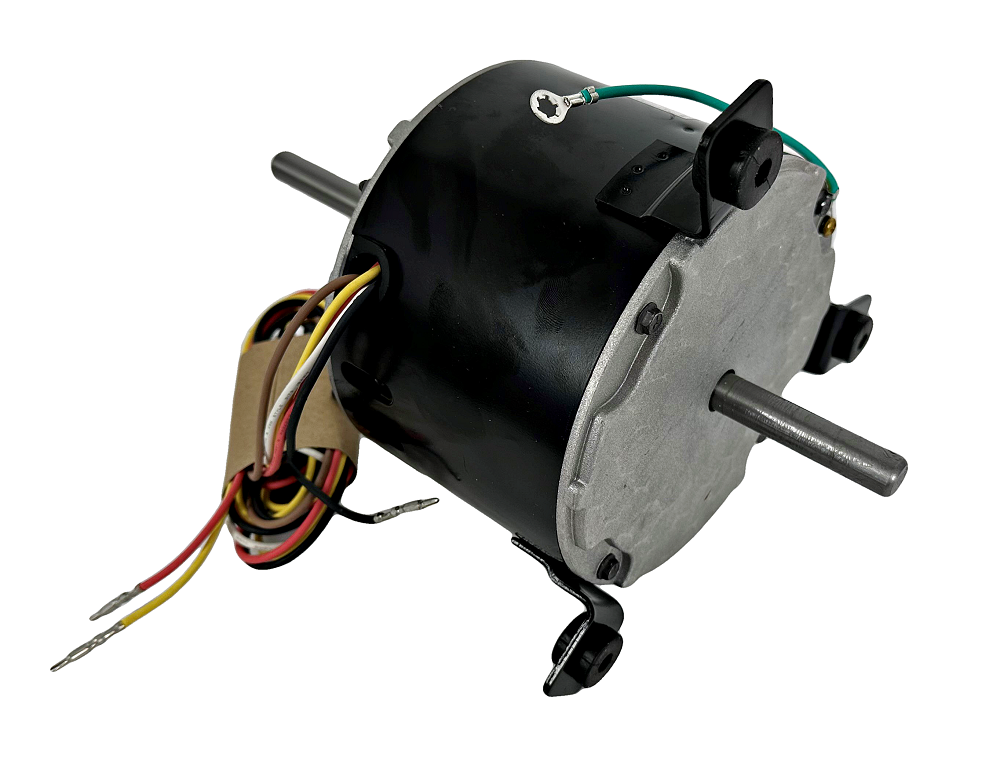

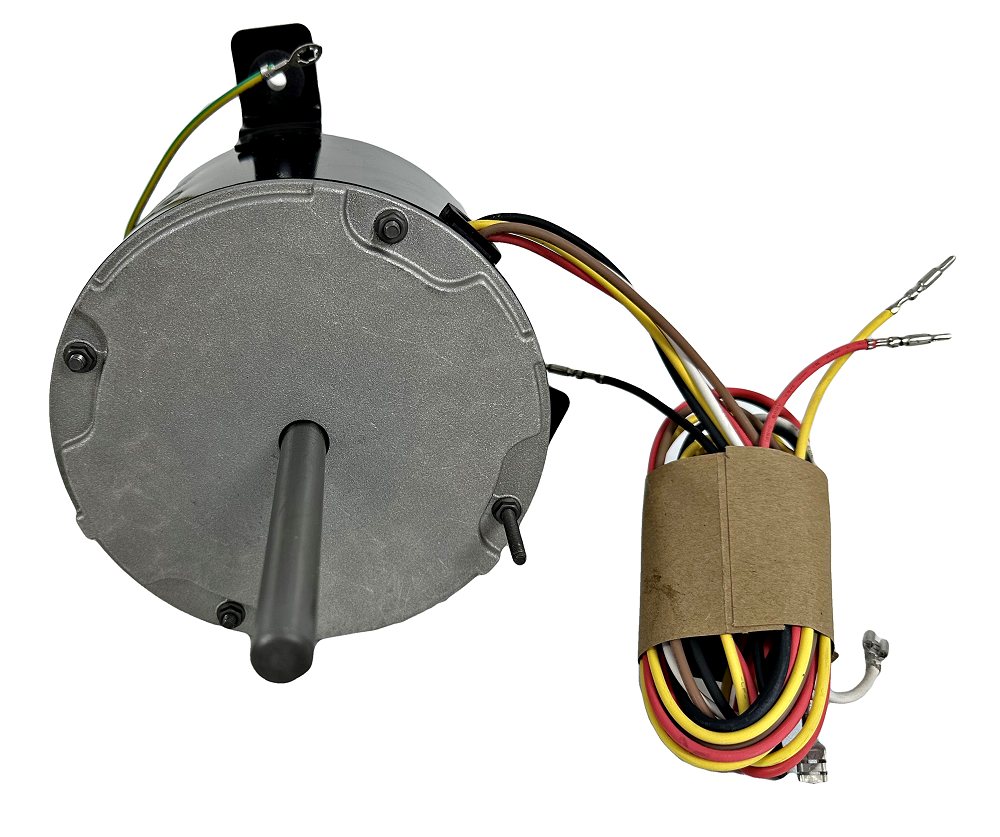

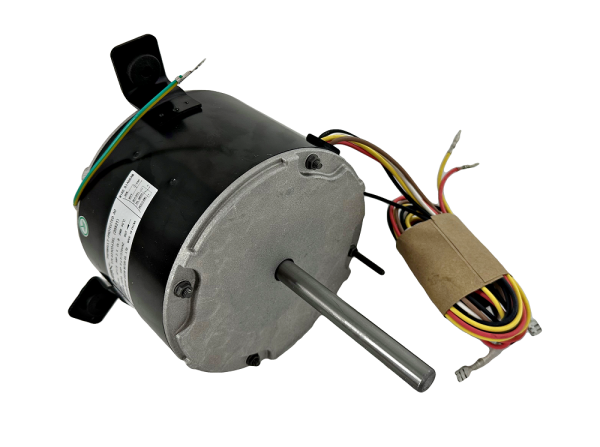

Highest Quality Replacement AO Smith 3-Speed 1650 RPM 115V 1/5HP RV Air Conditioner Motor. Guaranteed Best Price with the Fastest Shipping!

This is a Clearance Item Containing Cosmetic Flaws that have been Tested and Found in Proper Working Order.

1 in stock

This product is non-returnable and non-refundable. Click the checkbox to acknowledge that you would still like to add this product to your order.

SKU: ORV4540 | 20521 REFURB Categories: ,

Frequently Bought Together

+ +
Price for all three: $348.99
WC_Product_Simple Object
(
    [object_type:protected] => product
    [post_type:protected] => product
    [cache_group:protected] => products
    [data:protected] => Array
        (
            [name] => Replacement AO Smith 3-Speed 1650RPM 115V 1/5HP A/C Motor, ORV4540 REFURB
            [slug] => replacement-ao-smith-3-speed-1650-rpm-115v-1-5hp-a-c-motor-orv4540-refurb
            [date_created] => WC_DateTime Object
                (
                    [utc_offset:protected] => 0
                    [date] => 2024-02-21 16:40:36.000000
                    [timezone_type] => 3
                    [timezone] => America/Chicago
                )

            [date_modified] => WC_DateTime Object
                (
                    [utc_offset:protected] => 0
                    [date] => 2024-05-16 09:12:17.000000
                    [timezone_type] => 3
                    [timezone] => America/Chicago
                )

            [status] => publish
            [featured] =>
            [catalog_visibility] => visible
            [description] =>

AO Smith 3-Speed 1650 RPM 115V 1/5HP RV Air Conditioner Motor

Highest quality replacement AO Smith 3-Speed 1650 RPM 115V 1/5HP RV Air Conditioner Motor, Part Number ORV4540.

This is a Clearance Item Containing Cosmetic Flaws that have been Tested and Found in Proper Working Order.

Core Specs:

  • Thermally Protected Sleeve Bearing Motor
  • 1/5 HP, 2.5 Amps, 115 Volts
  • 1650 RPM, 3-Speed; CCW Lead End Rotation
  • 5 MFD 2-Prong Capacitor Included; Permanent Split Capacitor (PSC)
  • Class B Insulation, 40°C Ambient
  • 42" Leads with AMP PINS, 26" Leads with Female Spade Terminals
  • Sleeve Bearings; Thermally Protected
  • 1 Year Manufacturer Warranty
  • 5" Diameter - 42 Frame
  • No bracket on motor, round body with 3 welded tabs - Lug Mount Lead End
  • Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
  • 3 "Ear" Brackets with .56" diameter holes and grommets on 6" bolt circle, One extended stud on lead end
  • Double Shaft: 4" x 1/2" x 2-1/2"
Cross Reference: Dometic Duotherm 3105054.005. Also replaces F42B34A61, F42C40A61, F42C40A01, F42C61A61, and F42E63A61. Be sure to review the specs and dimensions to your motor to verify it will be the correct replacement.

Why Choose Pellethead?



On-Time Shipping

USA Retail Locations

Unmatched Warranty – No Hassles

Live Tech Support

We have over a 99.5% on-time shipment rate. Get your products on-time or before the estimated delivery date. We are not fly by night online Retailers that will be here today and gone tomorrow. We stand behind every product we sell with our no hassle warranty. We offer tech support for every single product we sell. Have an issue, have a question? No problem give us a ring.

Experienced

Quality Affordable Parts

Pellethead Ash Vault Pro

Pellethead Smokin Po Boy

We have been in business 30 years, we are pellet stove specialists. Period. We service our customers stoves, and provide you with the same quality parts. Check out the only ash vacuum made by pellet stove professionals in a corded and cordless option. Want to cook pizza in 3 minutes? Check out the Pellethead Smokin Po Boy.


General Specifications

UPC: 786674028426 Weight: 11.00 LB
Packaged Length: 11 IN Packaged Width: 8 IN
Packaged Height: 9 IN

Nameplate Specifications

Output HP: 1/5 Hp Output KW: 0.15 kW
Frequency: 60 Hz Voltage: 115 V
Current: 2.5 A Speed: 1650 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 42Y Enclosure: Open Enclosed
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: No CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Induction Run
Poles: 4 Rotation: Counterclockwise Lead End
Mounting: Lug Motor Orientation: Horizontal
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 10.44 in Shaft Diameter: 0.500 in
[short_description] => Highest Quality Replacement AO Smith 3-Speed 1650 RPM 115V 1/5HP RV Air Conditioner Motor. Guaranteed Best Price with the Fastest Shipping! This is a Clearance Item Containing Cosmetic Flaws that have been Tested and Found in Proper Working Order. [sku] => ORV4540 | 20521 REFURB [price] => 152.00 [regular_price] => 152.00 [sale_price] => [date_on_sale_from] => [date_on_sale_to] => [total_sales] => 1 [tax_status] => taxable [tax_class] => [manage_stock] => 1 [stock_quantity] => 1 [stock_status] => instock [backorders] => no [low_stock_amount] => [sold_individually] => [weight] => 12 [length] => 17 [width] => 6 [height] => 6 [upsell_ids] => Array ( [0] => 47317 [1] => 127359 [2] => 127277 [3] => 127287 [4] => 127336 [5] => 146832 ) [cross_sell_ids] => Array ( [0] => 41511 [1] => 47317 [2] => 127287 [3] => 127336 [4] => 127451 [5] => 146832 ) [parent_id] => 0 [reviews_allowed] => [purchase_note] => [attributes] => Array ( [reference] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => Reference [options] => Array ( [0] => Cross Reference Part Number Replacement: F42B34A61, F42C40A61, F42C40A01, F42C61A61, F42E63A61 and Dometic Duotherm 3105054.005. ) [position] => 0 [visible] => 1 [variation] => ) ) [electrical] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => Electrical [options] => Array ( [0] => 1/5 HP, 2.5 Amps, 115 Volts - 1650 RPM, 3-Speed, CCW Lead End Rotation. ) [position] => 1 [visible] => 1 [variation] => ) ) [size] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => Size [options] => Array ( [0] => 5" Diameter - 42 Frame, Double Shaft: 4" x 1/2" x 2-1/2", 5 MFD 2-Prong Capacitor Included; Permanent Split Capacitor. ) [position] => 2 [visible] => 1 [variation] => ) ) ) [default_attributes] => Array ( ) [menu_order] => 237 [post_password] => [virtual] => [downloadable] => [category_ids] => Array ( [0] => 62403 [1] => 72769 ) [tag_ids] => Array ( [0] => 73164 [1] => 73165 [2] => 73152 [3] => 73166 [4] => 73473 [5] => 73467 [6] => 73482 [7] => 73472 [8] => 73470 [9] => 73162 [10] => 73471 [11] => 73155 [12] => 73476 [13] => 73154 [14] => 73475 [15] => 73156 [16] => 73157 [17] => 73158 [18] => 73151 [19] => 73159 [20] => 73150 [21] => 73160 [22] => 63205 [23] => 73153 [24] => 73468 [25] => 73168 [26] => 73163 [27] => 73169 [28] => 73167 [29] => 73477 [30] => 73479 [31] => 73478 [32] => 73480 [33] => 73481 [34] => 73469 [35] => 73161 [36] => 62260 [37] => 73474 ) [shipping_class_id] => 0 [downloads] => Array ( ) [image_id] => 146844 [gallery_image_ids] => Array ( [0] => 146847 [1] => 146846 [2] => 146845 ) [download_limit] => -1 [download_expiry] => -1 [rating_counts] => Array ( ) [average_rating] => 0 [review_count] => 0 ) [supports:protected] => Array ( [0] => ajax_add_to_cart ) [id:protected] => 160597 [changes:protected] => Array ( ) [object_read:protected] => 1 [extra_data:protected] => Array ( ) [default_data:protected] => Array ( [name] => [slug] => [date_created] => [date_modified] => [status] => [featured] => [catalog_visibility] => visible [description] => [short_description] => [sku] => [price] => [regular_price] => [sale_price] => [date_on_sale_from] => [date_on_sale_to] => [total_sales] => 0 [tax_status] => taxable [tax_class] => [manage_stock] => [stock_quantity] => [stock_status] => instock [backorders] => no [low_stock_amount] => [sold_individually] => [weight] => [length] => [width] => [height] => [upsell_ids] => Array ( ) [cross_sell_ids] => Array ( ) [parent_id] => 0 [reviews_allowed] => 1 [purchase_note] => [attributes] => Array ( ) [default_attributes] => Array ( ) [menu_order] => 0 [post_password] => [virtual] => [downloadable] => [category_ids] => Array ( ) [tag_ids] => Array ( ) [shipping_class_id] => 0 [downloads] => Array ( ) [image_id] => [gallery_image_ids] => Array ( ) [download_limit] => -1 [download_expiry] => -1 [rating_counts] => Array ( ) [average_rating] => 0 [review_count] => 0 ) [data_store:protected] => WC_Data_Store Object ( [instance:WC_Data_Store:private] => WC_Product_Data_Store_CPT Object ( [internal_meta_keys:protected] => Array ( [0] => _visibility [1] => _sku [2] => _price [3] => _regular_price [4] => _sale_price [5] => _sale_price_dates_from [6] => _sale_price_dates_to [7] => total_sales [8] => _tax_status [9] => _tax_class [10] => _manage_stock [11] => _stock [12] => _stock_status [13] => _backorders [14] => _low_stock_amount [15] => _sold_individually [16] => _weight [17] => _length [18] => _width [19] => _height [20] => _upsell_ids [21] => _crosssell_ids [22] => _purchase_note [23] => _default_attributes [24] => _product_attributes [25] => _virtual [26] => _downloadable [27] => _download_limit [28] => _download_expiry [29] => _featured [30] => _downloadable_files [31] => _wc_rating_count [32] => _wc_average_rating [33] => _wc_review_count [34] => _variation_description [35] => _thumbnail_id [36] => _file_paths [37] => _product_image_gallery [38] => _product_version [39] => _wp_old_slug [40] => _edit_last [41] => _edit_lock ) [must_exist_meta_keys:protected] => Array ( [0] => _tax_class ) [extra_data_saved:protected] => [updated_props:protected] => Array ( ) [meta_type:protected] => post [object_id_field_for_meta:protected] => ) [stores:WC_Data_Store:private] => Array ( [coupon] => WC_Coupon_Data_Store_CPT [customer] => WC_Customer_Data_Store [customer-download] => WC_Customer_Download_Data_Store [customer-download-log] => WC_Customer_Download_Log_Data_Store [customer-session] => WC_Customer_Data_Store_Session [order] => WC_Order_Data_Store_CPT [order-refund] => WC_Order_Refund_Data_Store_CPT [order-item] => WC_Order_Item_Data_Store [order-item-coupon] => WC_Order_Item_Coupon_Data_Store [order-item-fee] => WC_Order_Item_Fee_Data_Store [order-item-product] => WC_Order_Item_Product_Data_Store [order-item-shipping] => WC_Order_Item_Shipping_Data_Store [order-item-tax] => WC_Order_Item_Tax_Data_Store [payment-token] => WC_Payment_Token_Data_Store [product] => WC_Product_Data_Store_CPT [product-grouped] => WC_Product_Grouped_Data_Store_CPT [product-variable] => WC_Product_Variable_Data_Store_CPT [product-variation] => WC_Product_Variation_Data_Store_CPT [shipping-zone] => WC_Shipping_Zone_Data_Store [webhook] => WC_Webhook_Data_Store [report-revenue-stats] => Automattic\WooCommerce\Admin\API\Reports\Orders\Stats\DataStore [report-orders] => Automattic\WooCommerce\Admin\API\Reports\Orders\DataStore [report-orders-stats] => Automattic\WooCommerce\Admin\API\Reports\Orders\Stats\DataStore [report-products] => Automattic\WooCommerce\Admin\API\Reports\Products\DataStore [report-variations] => Automattic\WooCommerce\Admin\API\Reports\Variations\DataStore [report-products-stats] => Automattic\WooCommerce\Admin\API\Reports\Products\Stats\DataStore [report-variations-stats] => Automattic\WooCommerce\Admin\API\Reports\Variations\Stats\DataStore [report-categories] => Automattic\WooCommerce\Admin\API\Reports\Categories\DataStore [report-taxes] => Automattic\WooCommerce\Admin\API\Reports\Taxes\DataStore [report-taxes-stats] => Automattic\WooCommerce\Admin\API\Reports\Taxes\Stats\DataStore [report-coupons] => Automattic\WooCommerce\Admin\API\Reports\Coupons\DataStore [report-coupons-stats] => Automattic\WooCommerce\Admin\API\Reports\Coupons\Stats\DataStore [report-downloads] => Automattic\WooCommerce\Admin\API\Reports\Downloads\DataStore [report-downloads-stats] => Automattic\WooCommerce\Admin\API\Reports\Downloads\Stats\DataStore [admin-note] => Automattic\WooCommerce\Admin\Notes\DataStore [report-customers] => Automattic\WooCommerce\Admin\API\Reports\Customers\DataStore [report-customers-stats] => Automattic\WooCommerce\Admin\API\Reports\Customers\Stats\DataStore [report-stock-stats] => Automattic\WooCommerce\Admin\API\Reports\Stock\Stats\DataStore ) [current_class_name:WC_Data_Store:private] => WC_Product_Data_Store_CPT [object_type:WC_Data_Store:private] => product-simple ) [meta_data:protected] => )

Description

AO Smith 3-Speed 1650 RPM 115V 1/5HP RV Air Conditioner Motor

Highest quality replacement AO Smith 3-Speed 1650 RPM 115V 1/5HP RV Air Conditioner Motor, Part Number ORV4540.

This is a Clearance Item Containing Cosmetic Flaws that have been Tested and Found in Proper Working Order.

Core Specs:

  • Thermally Protected Sleeve Bearing Motor
  • 1/5 HP, 2.5 Amps, 115 Volts
  • 1650 RPM, 3-Speed; CCW Lead End Rotation
  • 5 MFD 2-Prong Capacitor Included; Permanent Split Capacitor (PSC)
  • Class B Insulation, 40°C Ambient
  • 42″ Leads with AMP PINS, 26″ Leads with Female Spade Terminals
  • Sleeve Bearings; Thermally Protected
  • 1 Year Manufacturer Warranty
  • 5″ Diameter – 42 Frame
  • No bracket on motor, round body with 3 welded tabs – Lug Mount Lead End
  • Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
  • 3 “Ear” Brackets with .56″ diameter holes and grommets on 6″ bolt circle, One extended stud on lead end
  • Double Shaft: 4″ x 1/2″ x 2-1/2″

Cross Reference: Dometic Duotherm 3105054.005. Also replaces F42B34A61, F42C40A61, F42C40A01, F42C61A61, and F42E63A61.

Be sure to review the specs and dimensions to your motor to verify it will be the correct replacement.

Why Choose Pellethead?



On-Time Shipping

USA Retail Locations

Unmatched Warranty – No Hassles

Live Tech Support

We have over a 99.5% on-time shipment rate. Get your products on-time or before the estimated delivery date. We are not fly by night online Retailers that will be here today and gone tomorrow. We stand behind every product we sell with our no hassle warranty. We offer tech support for every single product we sell. Have an issue, have a question? No problem give us a ring.

Experienced

Quality Affordable Parts

Pellethead Ash Vault Pro

Pellethead Smokin Po Boy

We have been in business 30 years, we are pellet stove specialists. Period. We service our customers stoves, and provide you with the same quality parts. Check out the only ash vacuum made by pellet stove professionals in a corded and cordless option. Want to cook pizza in 3 minutes? Check out the Pellethead Smokin Po Boy.



General Specifications

UPC: 786674028426 Weight: 11.00 LB
Packaged Length: 11 IN Packaged Width: 8 IN
Packaged Height: 9 IN

Nameplate Specifications

Output HP: 1/5 Hp Output KW: 0.15 kW
Frequency: 60 Hz Voltage: 115 V
Current: 2.5 A Speed: 1650 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 42Y Enclosure: Open Enclosed
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: No CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Induction Run
Poles: 4 Rotation: Counterclockwise Lead End
Mounting: Lug Motor Orientation: Horizontal
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 10.44 in Shaft Diameter: 0.500 in









Specs

Reference Cross Reference Part Number Replacement: F42B34A61, F42C40A61, F42C40A01, F42C61A61, F42E63A61 and Dometic Duotherm 3105054.005.
Electrical 1/5 HP, 2.5 Amps, 115 Volts - 1650 RPM, 3-Speed, CCW Lead End Rotation.
Size 5" Diameter - 42 Frame, Double Shaft: 4" x 1/2" x 2-1/2", 5 MFD 2-Prong Capacitor Included; Permanent Split Capacitor.
