Whitfield & Lennox Control Circuit Board, OEM

$311.95

Free Priority Shipping On Orders over $35  *Priority Shipping On Parts and Accessory Orders in the Continental U.S. Only

Genuine OEM Whitfield & Lennox Replacement Control Circuit Board. Guaranteed Best Price and Fastest Free Shipping!

Please ensure you require this control board prior to ordering. We are unable to return circuit boards that have been installed or used in anyway. Be sure to check all wiring and components prior to installing a new control board. We are happy to assist with technical support.

1 in stock

This product is non-returnable and non-refundable. Click the checkbox to acknowledge that you would still like to add this product to your order.

SKU: 16052112 | 16022112 | 16023941 | 16053941 Categories: , , , , ,
WC_Product_Simple Object
(
    [object_type:protected] => product
    [post_type:protected] => product
    [cache_group:protected] => products
    [data:protected] => Array
        (
            [name] => Whitfield & Lennox Control Circuit Board, OEM
            [slug] => whitfield-lennox-control-circuit-board-oem
            [date_created] => WC_DateTime Object
                (
                    [utc_offset:protected] => 0
                    [date] => 2019-08-30 13:58:53.000000
                    [timezone_type] => 3
                    [timezone] => America/Chicago
                )

            [date_modified] => WC_DateTime Object
                (
                    [utc_offset:protected] => 0
                    [date] => 2022-09-29 12:15:25.000000
                    [timezone_type] => 3
                    [timezone] => America/Chicago
                )

            [status] => publish
            [featured] =>
            [catalog_visibility] => visible
            [description] =>

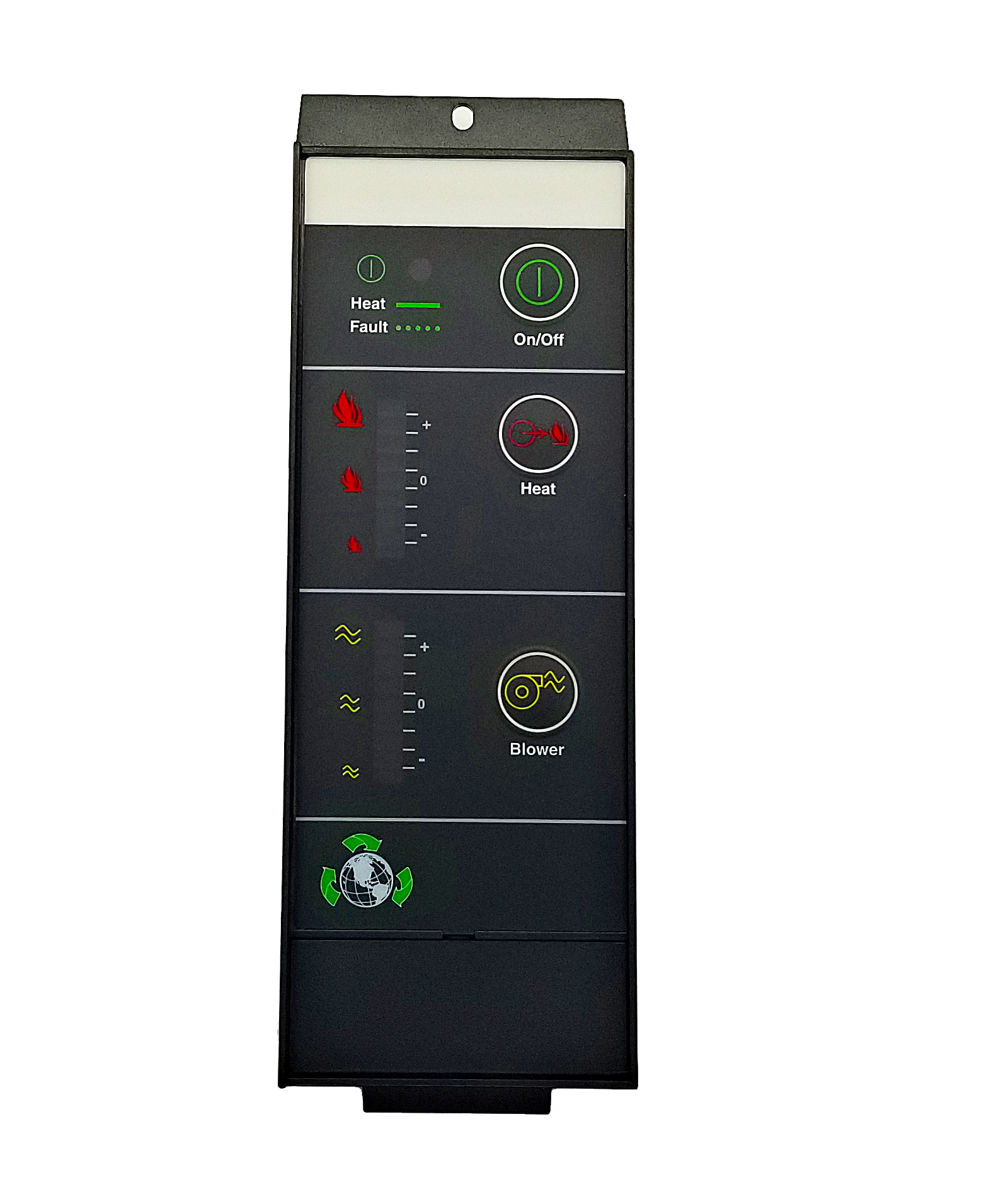

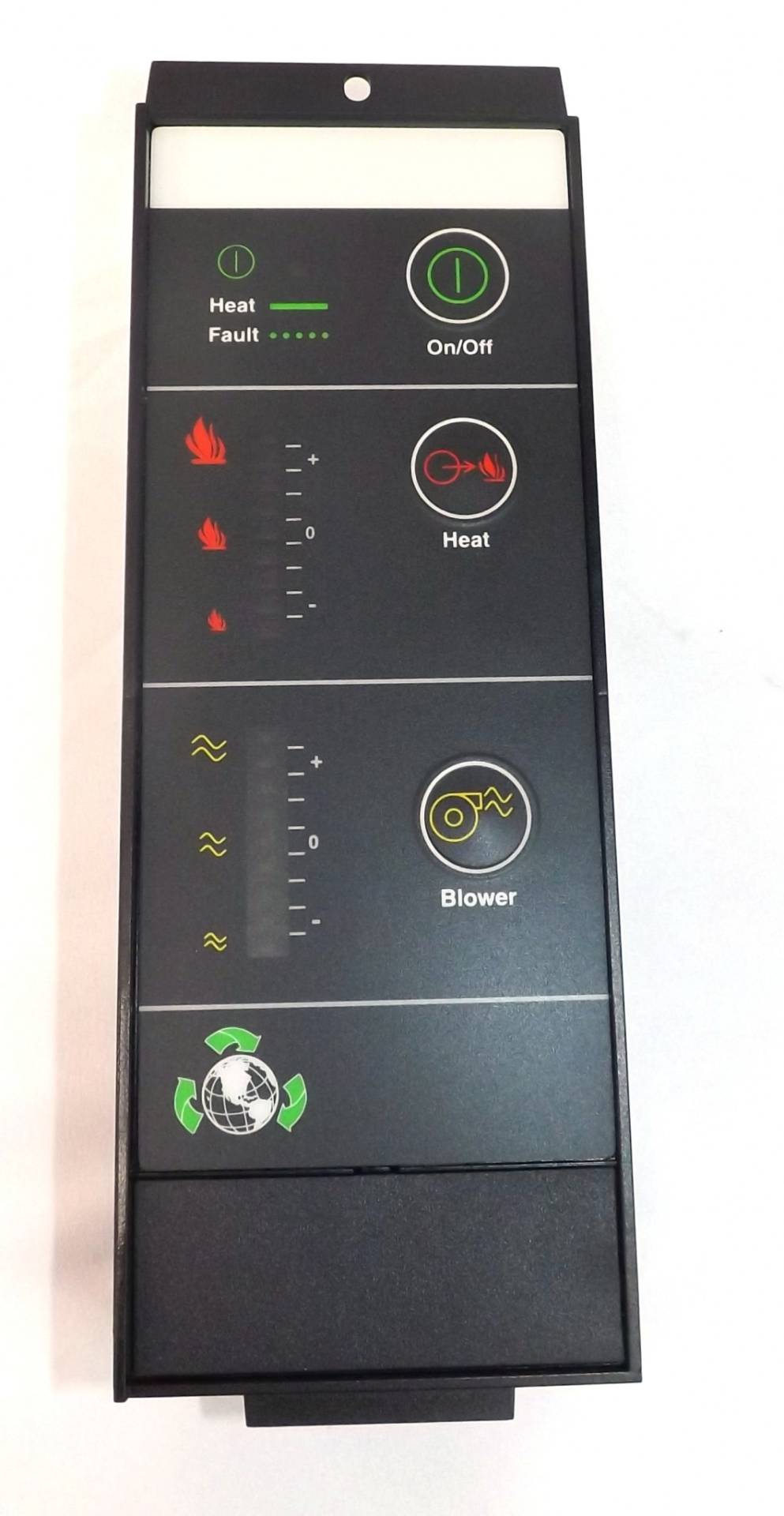

Whitfield & Lennox Control Circuit Board

The Lennox and Whitfield touch pad control board assembly. This circuit board/user control board is a direct replacement for part numbers 16052112, 16022112, 16023941, and 16053941. This control board is designed as replacement for the Optima 2, Optima 3, Profile 20, Profile 30, Traditions T300P, T301P, T305P, and T308P pellet stove and insert models. There are dipswitches that need to be set properly in the control board based on the model you have prior to installation. You can either message us with your model at time of order, or follow the notations under the models tab. We recommend always having the stove plugged into a surge protector to prevent electrical spikes and surges from harming the control board. Make sure your stove is unplugged from the wall before servicing, and please ensure you require a new control board prior to ordering. If you need assistance or control board testing services, please contact us. Genuine OEM Replacement Control Circuit Board Assembly Guaranteed Newest Stock Inventory 1 Year Manufacturer Warranty on Defects Only

Why Choose Pellethead?



On-Time Shipping

USA Retail Locations

Unmatched Warranty – No Hassles

Live Tech Support

We have over a 99.5% on-time shipment rate. Get your products on-time or before the estimated delivery date. We are not fly by night online Retailers that will be here today and gone tomorrow. We stand behind every product we sell with our no hassle warranty. We offer tech support for every single product we sell. Have an issue, have a question? No problem give us a ring.

Experienced

Quality Affordable Parts

Pellethead Ash Vault Pro

Pellethead Smokin Po Boy

We have been in business 30 years, we are pellet stove specialists. Period. We service our customers stoves, and provide you with the same quality parts. Check out the only ash vacuum made by pellet stove professionals in a corded and cordless option. Want to cook pizza in 3 minutes? Check out the Pellethead Smokin Po Boy.
[short_description] => Genuine OEM Whitfield & Lennox Replacement Control Circuit Board. Guaranteed Best Price and Fastest Free Shipping! Please ensure you require this control board prior to ordering. We are unable to return circuit boards that have been installed or used in anyway. Be sure to check all wiring and components prior to installing a new control board. We are happy to assist with technical support. [sku] => 16052112 | 16022112 | 16023941 | 16053941 [price] => 311.95 [regular_price] => 311.95 [sale_price] => [date_on_sale_from] => [date_on_sale_to] => [total_sales] => 82 [tax_status] => taxable [tax_class] => [manage_stock] => 1 [stock_quantity] => 1 [stock_status] => instock [backorders] => no [low_stock_amount] => [sold_individually] => [weight] => 1.5 [length] => 8 [width] => 4 [height] => 2 [upsell_ids] => Array ( [0] => 42393 [1] => 42372 [2] => 42373 [3] => 41491 [4] => 41834 [5] => 41830 [6] => 42368 [7] => 42041 [8] => 41832 [9] => 41847 [10] => 41583 [11] => 41831 ) [cross_sell_ids] => Array ( [0] => 41511 [1] => 41502 [2] => 41491 [3] => 41478 [4] => 41465 [5] => 41466 [6] => 41479 [7] => 82588 ) [parent_id] => 0 [reviews_allowed] => [purchase_note] => [attributes] => Array ( [electrical] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => Electrical [options] => Array ( [0] => 120V, AC. ) [position] => 0 [visible] => 1 [variation] => ) ) [installation] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => Installation [options] => Array ( [0] => Make sure your stove is unplugged from the wall. The inner dip switch settings in the control board must be adjusted and set based on the model. Please indicate which model you have when placing your order so we can properly set it before shipping. For Setting your own dip switches: Upon removing the back control board cover plate, there is a dip-switch box at the top numbered 1-4. Adjust for the various models as follows: - Profile 20/Optima II: Position 1 ON - 2,3,4 OFF - Profile 30/Optima III/Optima III insert: Position 2 ON - 1,3,4 OFF - Traditions (T300P, T301P, T305P, T308P): Position 3 ON - 1,2,4 OFF ) [position] => 1 [visible] => 1 [variation] => ) ) ) [default_attributes] => Array ( ) [menu_order] => 510 [post_password] => [virtual] => [downloadable] => [category_ids] => Array ( [1] => 63769 [2] => 65340 [4] => 65332 [6] => 63722 [8] => 79 [9] => 63761 ) [tag_ids] => Array ( [0] => 2813 [1] => 2814 [2] => 2815 [3] => 2816 [4] => 2817 [5] => 2818 [6] => 2819 [7] => 1641 [8] => 1642 [9] => 2821 [10] => 1704 [11] => 51524 [12] => 51515 [13] => 51528 [14] => 51518 [15] => 51523 [16] => 51513 [17] => 51527 [18] => 51517 [19] => 413 [20] => 2822 [21] => 414 [22] => 2823 [23] => 47937 [24] => 2824 [25] => 51540 [26] => 51539 [27] => 2825 [28] => 2826 [29] => 51536 [30] => 51535 [31] => 51534 [32] => 51533 [33] => 2827 [34] => 2828 [35] => 51538 [36] => 51537 [37] => 51532 [38] => 51531 [39] => 51530 [40] => 51529 [41] => 51543 [42] => 51542 [43] => 51544 [44] => 51541 [45] => 2829 [46] => 2830 [47] => 2831 [48] => 2832 [49] => 51579 [50] => 51575 [51] => 51583 [52] => 51571 [53] => 2833 [54] => 51578 [55] => 51574 [56] => 51582 [57] => 51570 [58] => 51546 [59] => 51545 [60] => 7427 [61] => 51581 [62] => 51577 [63] => 51585 [64] => 51573 [65] => 2834 [66] => 51580 [67] => 51576 [68] => 51584 [69] => 51572 [70] => 2835 [71] => 51550 [72] => 51549 [73] => 51548 [74] => 51547 [75] => 7429 [76] => 2836 [77] => 2837 [78] => 2838 [79] => 2839 [80] => 2840 [81] => 2841 [82] => 51565 [83] => 51566 [84] => 51564 [85] => 51567 [86] => 2842 [87] => 2843 [88] => 51562 [89] => 51563 [90] => 51561 [91] => 51552 [92] => 51551 [93] => 51568 [94] => 51569 [95] => 51202 [96] => 51553 [97] => 51554 [98] => 51556 [99] => 51555 [100] => 51558 [101] => 51557 [102] => 51560 [103] => 51559 [104] => 2844 [105] => 2845 [106] => 2846 [107] => 2847 [108] => 2848 [109] => 2849 [110] => 2850 [111] => 51522 [112] => 51516 [113] => 51526 [114] => 51520 [115] => 51521 [116] => 51514 [117] => 51525 [118] => 51519 [119] => 342 [120] => 2851 [121] => 432 ) [shipping_class_id] => 0 [downloads] => Array ( ) [image_id] => 88905 [gallery_image_ids] => Array ( [0] => 88906 [1] => 88907 [2] => 41959 [3] => 41964 ) [download_limit] => 0 [download_expiry] => 0 [rating_counts] => Array ( ) [average_rating] => 0 [review_count] => 0 ) [supports:protected] => Array ( [0] => ajax_add_to_cart ) [id:protected] => 41829 [changes:protected] => Array ( ) [object_read:protected] => 1 [extra_data:protected] => Array ( ) [default_data:protected] => Array ( [name] => [slug] => [date_created] => [date_modified] => [status] => [featured] => [catalog_visibility] => visible [description] => [short_description] => [sku] => [price] => [regular_price] => [sale_price] => [date_on_sale_from] => [date_on_sale_to] => [total_sales] => 0 [tax_status] => taxable [tax_class] => [manage_stock] => [stock_quantity] => [stock_status] => instock [backorders] => no [low_stock_amount] => [sold_individually] => [weight] => [length] => [width] => [height] => [upsell_ids] => Array ( ) [cross_sell_ids] => Array ( ) [parent_id] => 0 [reviews_allowed] => 1 [purchase_note] => [attributes] => Array ( ) [default_attributes] => Array ( ) [menu_order] => 0 [post_password] => [virtual] => [downloadable] => [category_ids] => Array ( ) [tag_ids] => Array ( ) [shipping_class_id] => 0 [downloads] => Array ( ) [image_id] => [gallery_image_ids] => Array ( ) [download_limit] => -1 [download_expiry] => -1 [rating_counts] => Array ( ) [average_rating] => 0 [review_count] => 0 ) [data_store:protected] => WC_Data_Store Object ( [instance:WC_Data_Store:private] => WC_Product_Data_Store_CPT Object ( [internal_meta_keys:protected] => Array ( [0] => _visibility [1] => _sku [2] => _price [3] => _regular_price [4] => _sale_price [5] => _sale_price_dates_from [6] => _sale_price_dates_to [7] => total_sales [8] => _tax_status [9] => _tax_class [10] => _manage_stock [11] => _stock [12] => _stock_status [13] => _backorders [14] => _low_stock_amount [15] => _sold_individually [16] => _weight [17] => _length [18] => _width [19] => _height [20] => _upsell_ids [21] => _crosssell_ids [22] => _purchase_note [23] => _default_attributes [24] => _product_attributes [25] => _virtual [26] => _downloadable [27] => _download_limit [28] => _download_expiry [29] => _featured [30] => _downloadable_files [31] => _wc_rating_count [32] => _wc_average_rating [33] => _wc_review_count [34] => _variation_description [35] => _thumbnail_id [36] => _file_paths [37] => _product_image_gallery [38] => _product_version [39] => _wp_old_slug [40] => _edit_last [41] => _edit_lock ) [must_exist_meta_keys:protected] => Array ( [0] => _tax_class ) [extra_data_saved:protected] => [updated_props:protected] => Array ( ) [meta_type:protected] => post [object_id_field_for_meta:protected] => ) [stores:WC_Data_Store:private] => Array ( [coupon] => WC_Coupon_Data_Store_CPT [customer] => WC_Customer_Data_Store [customer-download] => WC_Customer_Download_Data_Store [customer-download-log] => WC_Customer_Download_Log_Data_Store [customer-session] => WC_Customer_Data_Store_Session [order] => WC_Order_Data_Store_CPT [order-refund] => WC_Order_Refund_Data_Store_CPT [order-item] => WC_Order_Item_Data_Store [order-item-coupon] => WC_Order_Item_Coupon_Data_Store [order-item-fee] => WC_Order_Item_Fee_Data_Store [order-item-product] => WC_Order_Item_Product_Data_Store [order-item-shipping] => WC_Order_Item_Shipping_Data_Store [order-item-tax] => WC_Order_Item_Tax_Data_Store [payment-token] => WC_Payment_Token_Data_Store [product] => WC_Product_Data_Store_CPT [product-grouped] => WC_Product_Grouped_Data_Store_CPT [product-variable] => WC_Product_Variable_Data_Store_CPT [product-variation] => WC_Product_Variation_Data_Store_CPT [shipping-zone] => WC_Shipping_Zone_Data_Store [webhook] => WC_Webhook_Data_Store [report-revenue-stats] => Automattic\WooCommerce\Admin\API\Reports\Orders\Stats\DataStore [report-orders] => Automattic\WooCommerce\Admin\API\Reports\Orders\DataStore [report-orders-stats] => Automattic\WooCommerce\Admin\API\Reports\Orders\Stats\DataStore [report-products] => Automattic\WooCommerce\Admin\API\Reports\Products\DataStore [report-variations] => Automattic\WooCommerce\Admin\API\Reports\Variations\DataStore [report-products-stats] => Automattic\WooCommerce\Admin\API\Reports\Products\Stats\DataStore [report-variations-stats] => Automattic\WooCommerce\Admin\API\Reports\Variations\Stats\DataStore [report-categories] => Automattic\WooCommerce\Admin\API\Reports\Categories\DataStore [report-taxes] => Automattic\WooCommerce\Admin\API\Reports\Taxes\DataStore [report-taxes-stats] => Automattic\WooCommerce\Admin\API\Reports\Taxes\Stats\DataStore [report-coupons] => Automattic\WooCommerce\Admin\API\Reports\Coupons\DataStore [report-coupons-stats] => Automattic\WooCommerce\Admin\API\Reports\Coupons\Stats\DataStore [report-downloads] => Automattic\WooCommerce\Admin\API\Reports\Downloads\DataStore [report-downloads-stats] => Automattic\WooCommerce\Admin\API\Reports\Downloads\Stats\DataStore [admin-note] => Automattic\WooCommerce\Admin\Notes\DataStore [report-customers] => Automattic\WooCommerce\Admin\API\Reports\Customers\DataStore [report-customers-stats] => Automattic\WooCommerce\Admin\API\Reports\Customers\Stats\DataStore [report-stock-stats] => Automattic\WooCommerce\Admin\API\Reports\Stock\Stats\DataStore ) [current_class_name:WC_Data_Store:private] => WC_Product_Data_Store_CPT [object_type:WC_Data_Store:private] => product-simple ) [meta_data:protected] => )

Description

Whitfield & Lennox Control Circuit Board

The Lennox and Whitfield touch pad control board assembly. This circuit board/user control board is a direct replacement for part numbers 16052112, 16022112, 16023941, and 16053941. This control board is designed as replacement for the Optima 2, Optima 3, Profile 20, Profile 30, Traditions T300P, T301P, T305P, and T308P pellet stove and insert models. There are dipswitches that need to be set properly in the control board based on the model you have prior to installation. You can either message us with your model at time of order, or follow the notations under the models tab. We recommend always having the stove plugged into a surge protector to prevent electrical spikes and surges from harming the control board. Make sure your stove is unplugged from the wall before servicing, and please ensure you require a new control board prior to ordering. If you need assistance or control board testing services, please contact us.

Genuine OEM Replacement

Control Circuit Board Assembly

Guaranteed Newest Stock Inventory

1 Year Manufacturer Warranty on Defects Only

Why Choose Pellethead?



On-Time Shipping

USA Retail Locations

Unmatched Warranty – No Hassles

Live Tech Support

We have over a 99.5% on-time shipment rate. Get your products on-time or before the estimated delivery date.We are not fly by night online Retailers that will be here today and gone tomorrow.We stand behind every product we sell with our no hassle warranty.We offer tech support for every single product we sell. Have an issue, have a question? No problem give us a ring.

Experienced

Quality Affordable Parts

Pellethead Ash Vault Pro

Pellethead Smokin Po Boy

We have been in business 30 years, we are pellet stove specialists. Period.We service our customers stoves, and provide you with the same quality parts.Check out the only ash vacuum made by pellet stove professionals in a corded and cordless option.Want to cook pizza in 3 minutes? Check out the Pellethead Smokin Po Boy.

Specs

Electrical120V, AC.
InstallationMake sure your stove is unplugged from the wall. The inner dip switch settings in the control board must be adjusted and set based on the model. Please indicate which model you have when placing your order so we can properly set it before shipping. For Setting your own dip switches: Upon removing the back control board cover plate, there is a dip-switch box at the top numbered 1-4. Adjust for the various models as follows: - Profile 20/Optima II: Position 1 ON - 2,3,4 OFF - Profile 30/Optima III/Optima III insert: Position 2 ON - 1,3,4 OFF - Traditions (T300P, T301P, T305P, T308P): Position 3 ON - 1,2,4 OFF

Models

Model Notes

  • The inner dip switch settings in the control board must be adjusted and set based on the model. Please indicate which model you have when placing your order so we can properly set it before shipping.
  • For Setting your own dip switches: Upon removing the back control board cover plate, there is a dip-switch box at the top numbered 1-4. Adjust for the various models as follows:
  • Profile 20/Optima II: Position 1 ON – 2,3,4 OFF
  • Profile 30/Optima III/Optima III insert: Position 2 ON – 1,3,4 OFF
  • Traditions (T300P, T301P, T305P, T308P): Position 3 ON – 1,2,4 OFF

Lennox Pellet

  • Optima 2 FS (A02)
  • Optima 3 FS (A03)
  • Optima 3 Insert (A03)
  • Profile 20 FS (P9)
  • Profile 30 FS (P10)
  • Profile 30 Insert (P10)
  • Traditions - (T300P, T301P, T305P, T308P)

Whitfield

  • Optima 2 (A02)
  • Optima 3 (A03)
  • Profile 20 (P9)
  • Profile 30 (P10)
  • Profile 30 Insert (P10)
  • Traditions (T300P, T301P, T305P, T308P)
