QuadraFire, Heatilator, PelPro & Pleasant Hearth Differential Vacuum Pressure Switch, Aftermarket

$42.99

Free Priority Shipping On Orders over $35  *Priority Shipping On Parts and Accessory Orders in the Continental U.S. Only

Quadra-Fire, Heatilator, PelPro and Pleasant Hearth Replacement Differential Vacuum Pressure Switch. Guaranteed Best Price with the Fastest Free Shipping!

35 in stock

Alternative Products

Frequently Bought Together

+ +
Price for all three: $183.98
WC_Product_Simple Object
(
    [object_type:protected] => product
    [post_type:protected] => product
    [cache_group:protected] => products
    [data:protected] => Array
        (
            [name] => QuadraFire, Heatilator, PelPro & Pleasant Hearth Differential Vacuum Pressure Switch, Aftermarket
            [slug] => quadrafire-heatilator-pelpro-pleasant-hearth-differential-vacuum-pressure-switch-aftermarket
            [date_created] => WC_DateTime Object
                (
                    [utc_offset:protected] => 0
                    [date] => 2019-08-30 14:56:57.000000
                    [timezone_type] => 3
                    [timezone] => America/Chicago
                )

            [date_modified] => WC_DateTime Object
                (
                    [utc_offset:protected] => 0
                    [date] => 2023-01-31 18:33:06.000000
                    [timezone_type] => 3
                    [timezone] => America/Chicago
                )

            [status] => publish
            [featured] =>
            [catalog_visibility] => visible
            [description] =>

HHT Vacuum Pressure Switch

Top quality aftermarket replacement HHT Vacuum Switch. This vacuum switch is the correct replacement for Heatilator Eco-Choice, Danson PelPro, Pleasant Hearth, and Quadra-Fire pellet stove and insert models. Please review our models spec tab to verify correct replacement. Also referred to as the pressure switch or differential switch, the vacuum switch senses pressure in the firebox and exhaust flue vent pipe. The vacuum switch is in-line with the auger feed motor and will not allow the auger motor to run if it is tripped or faulty. Any air losses or air blockages can trip the vacuum switch. When experiencing issues with this safety switch, check the following: Vacuum switch hose/tubing, firebox door and ash door gasket seals, ash accumulation in the stove or venting, air intake channel, combustion blower/exhaust fan functionality. Check out our video below to learn more about the vacuum switch. This vacuum switch replaces the following factory part numbers SRV7000-166, 812-3430, 812-1990, SRV7000-447, and SRV7000-531. Top Quality Aftermarket Replacement Differential Vacuum Pressure Switch, Includes Both Hoses Guaranteed Newest Stock Inventory 6 Month Manufacturer Warranty

Why Choose Pellethead?



On-Time Shipping

USA Retail Locations

Unmatched Warranty – No Hassles

Live Tech Support

We have over a 99.5% on-time shipment rate. Get your products on-time or before the estimated delivery date. We are not fly by night online Retailers that will be here today and gone tomorrow. We stand behind every product we sell with our no hassle warranty. We offer tech support for every single product we sell. Have an issue, have a question? No problem give us a ring.

Experienced

Quality Affordable Parts

Pellethead Ash Vault Pro

Pellethead Smokin Po Boy

We have been in business 30 years, we are pellet stove specialists. Period. We service our customers stoves, and provide you with the same quality parts. Check out the only ash vacuum made by pellet stove professionals in a corded and cordless option. Want to cook pizza in 3 minutes? Check out the Pellethead Smokin Po Boy.
  [short_description] => Quadra-Fire, Heatilator, PelPro and Pleasant Hearth Replacement Differential Vacuum Pressure Switch. Guaranteed Best Price with the Fastest Free Shipping! [sku] => SRV7000-531 | AMP-20097K [price] => 42.99 [regular_price] => 42.99 [sale_price] => [date_on_sale_from] => [date_on_sale_to] => [total_sales] => 144 [tax_status] => taxable [tax_class] => [manage_stock] => 1 [stock_quantity] => 35 [stock_status] => instock [backorders] => no [low_stock_amount] => [sold_individually] => [weight] => 0.9 [length] => 5 [width] => 3 [height] => 3 [upsell_ids] => Array ( [0] => 41491 [1] => 45880 [2] => 45892 [3] => 42236 [4] => 42874 [5] => 42237 [6] => 42011 [7] => 42013 [8] => 42022 [9] => 42235 [10] => 42008 [11] => 42240 ) [cross_sell_ids] => Array ( [0] => 42045 [1] => 41491 [2] => 79710 [3] => 41478 [4] => 41465 [5] => 41479 ) [parent_id] => 0 [reviews_allowed] => [purchase_note] => [attributes] => Array ( [part-numbers] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => Part Numbers [options] => Array ( [0] => SRV7000-166 [1] => 812-3430 [2] => 812-1990 [3] => SRV7000-447 [4] => SRV7000-531 [5] => AMP-20097K ) [position] => 0 [visible] => 1 [variation] => ) ) [function] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => Function [options] => Array ( [0] => Senses air flow/restriction within the firebox, exhaust chamber, vent pipe and fuel hopper on select models. If proper air flow/draft is not met this switch will trip and not allow the auger motor to operate. This is a safety sensor. ) [position] => 1 [visible] => 1 [variation] => ) ) ) [default_attributes] => Array ( ) [menu_order] => 663 [post_password] => [virtual] => [downloadable] => [category_ids] => Array ( [1] => 63753 [2] => 64495 [3] => 65302 [4] => 65384 [6] => 65375 [7] => 65295 [8] => 64488 [9] => 63744 [11] => 63722 [13] => 79 ) [tag_ids] => Array ( [0] => 7119 [1] => 69059 [2] => 69061 [3] => 7120 [4] => 7121 [5] => 7122 [6] => 7124 [7] => 7125 [8] => 7126 [9] => 7130 [10] => 7131 [11] => 40843 [12] => 40847 [13] => 40852 [14] => 7133 [15] => 40842 [16] => 7134 [17] => 6060 [18] => 7135 [19] => 7136 [20] => 6062 [21] => 69058 [22] => 69060 [23] => 7138 [24] => 7139 [25] => 7141 [26] => 7142 [27] => 40841 [28] => 66202 [29] => 66200 [30] => 66199 [31] => 66201 [32] => 66198 [33] => 40837 [34] => 40836 [35] => 40838 [36] => 7147 [37] => 40844 [38] => 7150 [39] => 40846 [40] => 40853 [41] => 7151 [42] => 40845 [43] => 40832 [44] => 7158 [45] => 7159 [46] => 7160 [47] => 7161 [48] => 7162 [49] => 7163 [50] => 7164 [51] => 3430 [52] => 7165 [53] => 7166 [54] => 7167 [55] => 7168 [56] => 7169 [57] => 7170 [58] => 7171 [59] => 7172 [60] => 7173 [61] => 69312 [62] => 704 [63] => 7174 [64] => 7175 [65] => 7176 [66] => 7177 [67] => 7178 [68] => 40840 [69] => 7179 [70] => 7180 [71] => 69322 [72] => 69321 [73] => 69318 [74] => 69062 [75] => 69316 [76] => 69054 [77] => 69314 [78] => 69319 [79] => 69063 [80] => 69317 [81] => 69055 [82] => 69315 [83] => 69313 [84] => 69056 [85] => 69057 [86] => 69320 [87] => 69053 [88] => 7181 [89] => 553 [90] => 7182 [91] => 7183 [92] => 7184 [93] => 40839 [94] => 7185 [95] => 40849 [96] => 40848 [97] => 40850 [98] => 7186 [99] => 7187 [100] => 7188 [101] => 7189 [102] => 7191 [103] => 7192 [104] => 7193 [105] => 7194 [106] => 40835 [107] => 40851 [108] => 40834 [109] => 40833 ) [shipping_class_id] => 0 [downloads] => Array ( ) [image_id] => 109763 [gallery_image_ids] => Array ( [0] => 109763 [1] => 109764 ) [download_limit] => 0 [download_expiry] => 0 [rating_counts] => Array ( ) [average_rating] => 0 [review_count] => 0 ) [supports:protected] => Array ( [0] => ajax_add_to_cart ) [id:protected] => 42861 [changes:protected] => Array ( ) [object_read:protected] => 1 [extra_data:protected] => Array ( ) [default_data:protected] => Array ( [name] => [slug] => [date_created] => [date_modified] => [status] => [featured] => [catalog_visibility] => visible [description] => [short_description] => [sku] => [price] => [regular_price] => [sale_price] => [date_on_sale_from] => [date_on_sale_to] => [total_sales] => 0 [tax_status] => taxable [tax_class] => [manage_stock] => [stock_quantity] => [stock_status] => instock [backorders] => no [low_stock_amount] => [sold_individually] => [weight] => [length] => [width] => [height] => [upsell_ids] => Array ( ) [cross_sell_ids] => Array ( ) [parent_id] => 0 [reviews_allowed] => 1 [purchase_note] => [attributes] => Array ( ) [default_attributes] => Array ( ) [menu_order] => 0 [post_password] => [virtual] => [downloadable] => [category_ids] => Array ( ) [tag_ids] => Array ( ) [shipping_class_id] => 0 [downloads] => Array ( ) [image_id] => [gallery_image_ids] => Array ( ) [download_limit] => -1 [download_expiry] => -1 [rating_counts] => Array ( ) [average_rating] => 0 [review_count] => 0 ) [data_store:protected] => WC_Data_Store Object ( [instance:WC_Data_Store:private] => WC_Product_Data_Store_CPT Object ( [internal_meta_keys:protected] => Array ( [0] => _visibility [1] => _sku [2] => _price [3] => _regular_price [4] => _sale_price [5] => _sale_price_dates_from [6] => _sale_price_dates_to [7] => total_sales [8] => _tax_status [9] => _tax_class [10] => _manage_stock [11] => _stock [12] => _stock_status [13] => _backorders [14] => _low_stock_amount [15] => _sold_individually [16] => _weight [17] => _length [18] => _width [19] => _height [20] => _upsell_ids [21] => _crosssell_ids [22] => _purchase_note [23] => _default_attributes [24] => _product_attributes [25] => _virtual [26] => _downloadable [27] => _download_limit [28] => _download_expiry [29] => _featured [30] => _downloadable_files [31] => _wc_rating_count [32] => _wc_average_rating [33] => _wc_review_count [34] => _variation_description [35] => _thumbnail_id [36] => _file_paths [37] => _product_image_gallery [38] => _product_version [39] => _wp_old_slug [40] => _edit_last [41] => _edit_lock ) [must_exist_meta_keys:protected] => Array ( [0] => _tax_class ) [extra_data_saved:protected] => [updated_props:protected] => Array ( ) [meta_type:protected] => post [object_id_field_for_meta:protected] => ) [stores:WC_Data_Store:private] => Array ( [coupon] => WC_Coupon_Data_Store_CPT [customer] => WC_Customer_Data_Store [customer-download] => WC_Customer_Download_Data_Store [customer-download-log] => WC_Customer_Download_Log_Data_Store [customer-session] => WC_Customer_Data_Store_Session [order] => WC_Order_Data_Store_CPT [order-refund] => WC_Order_Refund_Data_Store_CPT [order-item] => WC_Order_Item_Data_Store [order-item-coupon] => WC_Order_Item_Coupon_Data_Store [order-item-fee] => WC_Order_Item_Fee_Data_Store [order-item-product] => WC_Order_Item_Product_Data_Store [order-item-shipping] => WC_Order_Item_Shipping_Data_Store [order-item-tax] => WC_Order_Item_Tax_Data_Store [payment-token] => WC_Payment_Token_Data_Store [product] => WC_Product_Data_Store_CPT [product-grouped] => WC_Product_Grouped_Data_Store_CPT [product-variable] => WC_Product_Variable_Data_Store_CPT [product-variation] => WC_Product_Variation_Data_Store_CPT [shipping-zone] => WC_Shipping_Zone_Data_Store [webhook] => WC_Webhook_Data_Store [report-revenue-stats] => Automattic\WooCommerce\Admin\API\Reports\Orders\Stats\DataStore [report-orders] => Automattic\WooCommerce\Admin\API\Reports\Orders\DataStore [report-orders-stats] => Automattic\WooCommerce\Admin\API\Reports\Orders\Stats\DataStore [report-products] => Automattic\WooCommerce\Admin\API\Reports\Products\DataStore [report-variations] => Automattic\WooCommerce\Admin\API\Reports\Variations\DataStore [report-products-stats] => Automattic\WooCommerce\Admin\API\Reports\Products\Stats\DataStore [report-variations-stats] => Automattic\WooCommerce\Admin\API\Reports\Variations\Stats\DataStore [report-categories] => Automattic\WooCommerce\Admin\API\Reports\Categories\DataStore [report-taxes] => Automattic\WooCommerce\Admin\API\Reports\Taxes\DataStore [report-taxes-stats] => Automattic\WooCommerce\Admin\API\Reports\Taxes\Stats\DataStore [report-coupons] => Automattic\WooCommerce\Admin\API\Reports\Coupons\DataStore [report-coupons-stats] => Automattic\WooCommerce\Admin\API\Reports\Coupons\Stats\DataStore [report-downloads] => Automattic\WooCommerce\Admin\API\Reports\Downloads\DataStore [report-downloads-stats] => Automattic\WooCommerce\Admin\API\Reports\Downloads\Stats\DataStore [admin-note] => Automattic\WooCommerce\Admin\Notes\DataStore [report-customers] => Automattic\WooCommerce\Admin\API\Reports\Customers\DataStore [report-customers-stats] => Automattic\WooCommerce\Admin\API\Reports\Customers\Stats\DataStore [report-stock-stats] => Automattic\WooCommerce\Admin\API\Reports\Stock\Stats\DataStore ) [current_class_name:WC_Data_Store:private] => WC_Product_Data_Store_CPT [object_type:WC_Data_Store:private] => product-simple ) [meta_data:protected] => )

Description

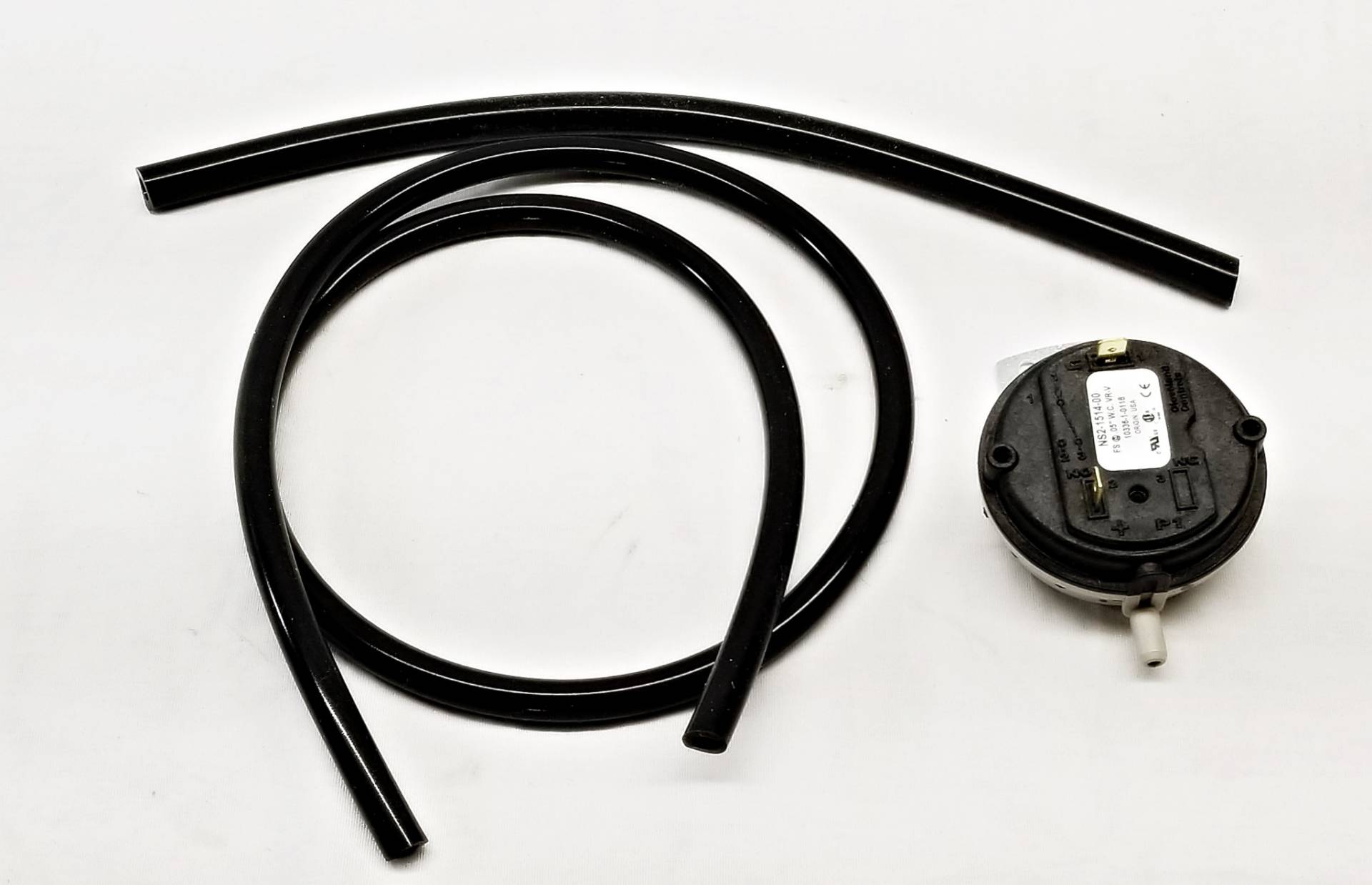

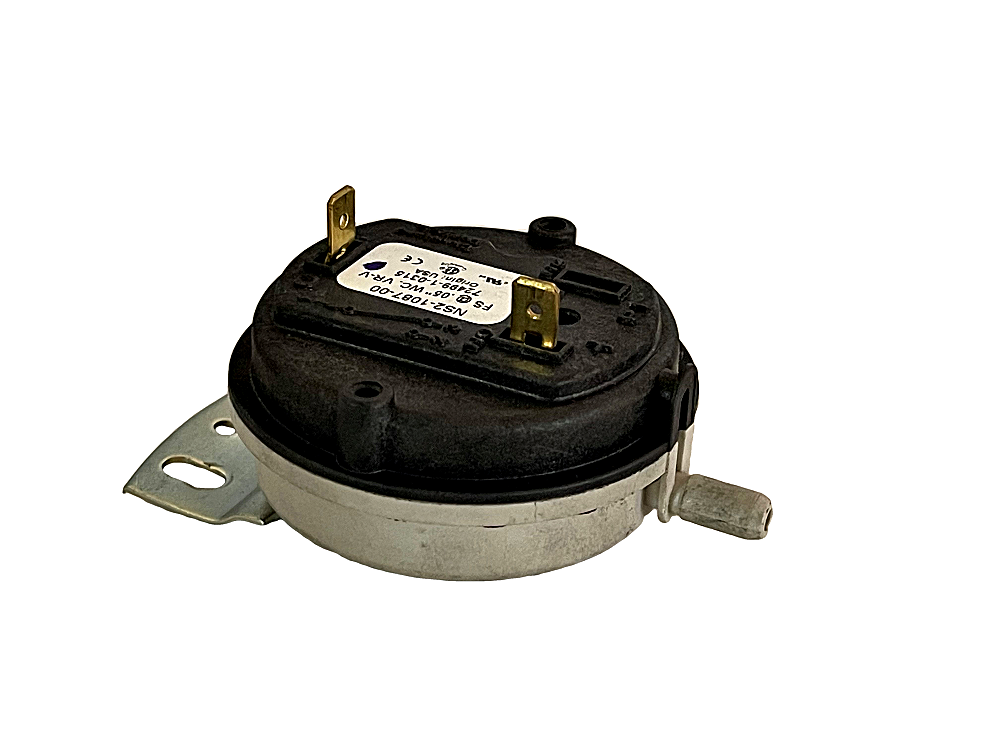

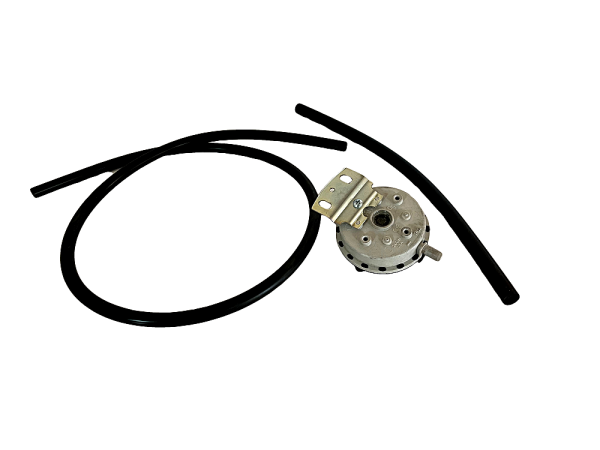

HHT Vacuum Pressure Switch

Top quality aftermarket replacement HHT Vacuum Switch. This vacuum switch is the correct replacement for Heatilator Eco-Choice, Danson PelPro, Pleasant Hearth, and Quadra-Fire pellet stove and insert models. Please review our models spec tab to verify correct replacement. Also referred to as the pressure switch or differential switch, the vacuum switch senses pressure in the firebox and exhaust flue vent pipe. The vacuum switch is in-line with the auger feed motor and will not allow the auger motor to run if it is tripped or faulty. Any air losses or air blockages can trip the vacuum switch. When experiencing issues with this safety switch, check the following: Vacuum switch hose/tubing, firebox door and ash door gasket seals, ash accumulation in the stove or venting, air intake channel, combustion blower/exhaust fan functionality. Check out our video below to learn more about the vacuum switch. This vacuum switch replaces the following factory part numbers SRV7000-166, 812-3430, 812-1990, SRV7000-447, and SRV7000-531.

Top Quality Aftermarket Replacement

Differential Vacuum Pressure Switch, Includes Both Hoses

Guaranteed Newest Stock Inventory

6 Month Manufacturer Warranty

Why Choose Pellethead?



On-Time Shipping

USA Retail Locations

Unmatched Warranty – No Hassles

Live Tech Support

We have over a 99.5% on-time shipment rate. Get your products on-time or before the estimated delivery date. We are not fly by night online Retailers that will be here today and gone tomorrow. We stand behind every product we sell with our no hassle warranty. We offer tech support for every single product we sell. Have an issue, have a question? No problem give us a ring.

Experienced

Quality Affordable Parts

Pellethead Ash Vault Pro

Pellethead Smokin Po Boy

We have been in business 30 years, we are pellet stove specialists. Period. We service our customers stoves, and provide you with the same quality parts. Check out the only ash vacuum made by pellet stove professionals in a corded and cordless option. Want to cook pizza in 3 minutes? Check out the Pellethead Smokin Po Boy.



Specs

Part Numbers SRV7000-166
Function Senses air flow/restriction within the firebox, exhaust chamber, vent pipe and fuel hopper on select models. If proper air flow/draft is not met this switch will trip and not allow the auger motor to operate. This is a safety sensor.

Models

Heatilator Pellet

  • CAB50
  • PS35
  • PS50

PelPro

  • PP130
  • PP150
  • PP60
  • PP70
  • PPC90
  • TSC90

Pleasant Hearth

  • PH35PS
  • PH50CABPS
  • PH50PS

Quadra-Fire Pellet

  • 1000
  • 1100i Insert
  • 1200 Freestanding
  • 1200i Insert
  • 800 Nova
  • Castile Freestanding
  • Castile Insert
  • Contour
  • Edge 60
  • Mt Vernon AE
  • Mt Vernon AE Insert
  • Mt Vernon E2
  • Mt Vernon E2 Insert
  • Mt Vernon OE
  • Outfitter I
  • Outfitter II
  • Santa Fe
  • Santa Fe Insert
  • Trekker
  • Trekker Insert
