Harman & Heatilator 5″ Double Paddle Combustion Fan Blade Impeller, Aftermarket

$14.00

  Free Shipping On Orders over $75
*Includes Shipping On Parts and Accessory Orders in the Continental U.S. Only

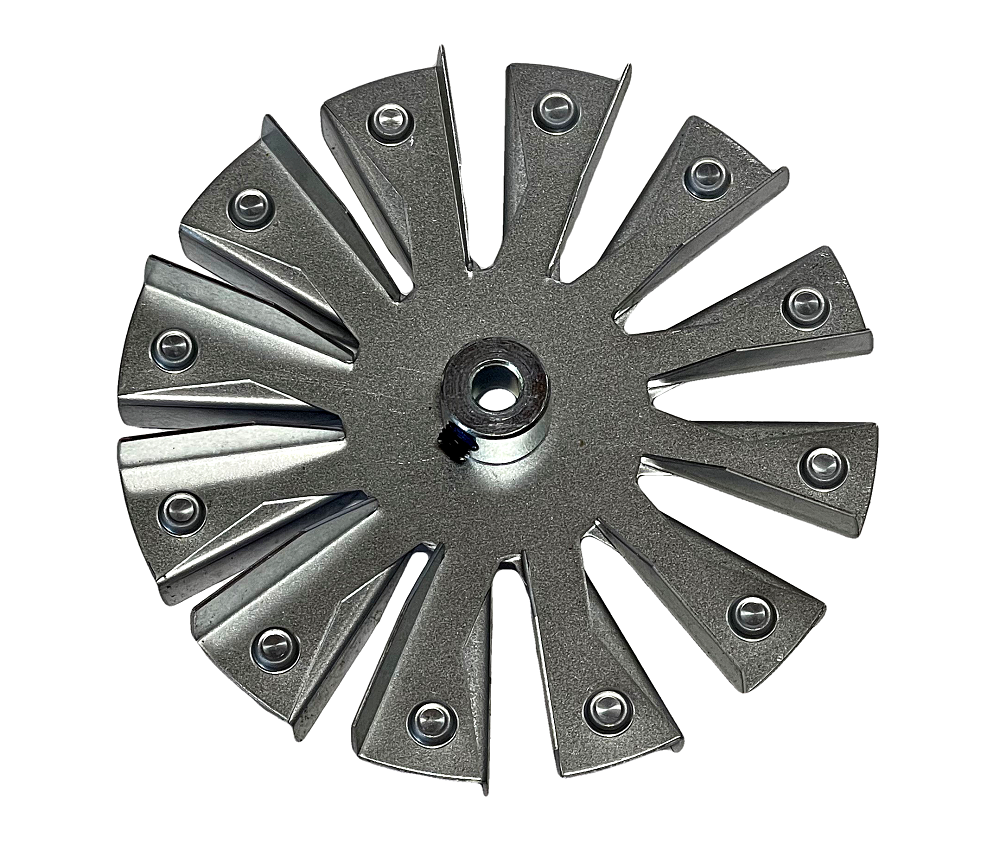

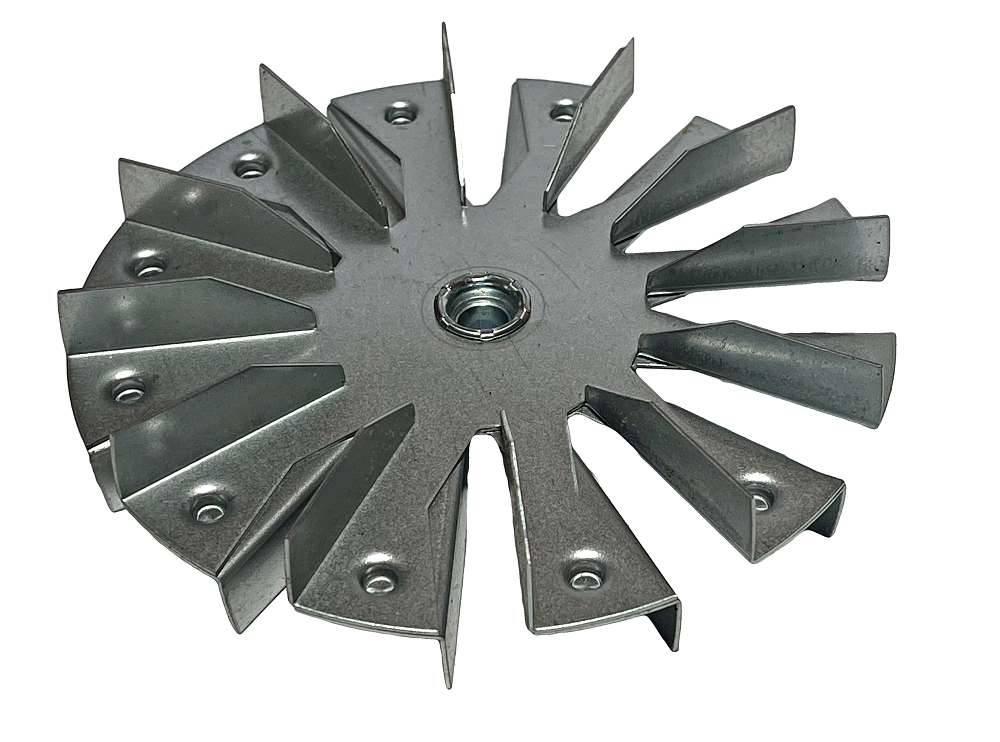

Top Quality Harman & Heatilator Eco-Choice 5″ Double Paddle Fan Impeller for the Combustion Exhaust Fan Motor. Guaranteed Best Price and Fastest Shipping!

228 in stock

Alternative Product (OEM)

OEM Quality Harman & Heatilator Eco-Choice 5" Double Paddle Exhaust Fan Blade Impeller. Guaranteed Best Price with the Fastest Shipping!
SKU: 3-20-502221 | AMP 502221

Frequently Bought Together

+ + +
Price for all: $281.99
WC_Product_Simple Object
(
    [object_type:protected] => product
    [post_type:protected] => product
    [cache_group:protected] => products
    [data:protected] => Array
        (
            [name] => Harman & Heatilator 5" Double Paddle Combustion Fan Blade Impeller, Aftermarket
            [slug] => harman-heatilator-5-double-paddle-combustion-fan-blade-impeller-aftermarket
            [date_created] => WC_DateTime Object
                (
                    [utc_offset:protected] => 0
                    [date] => 2019-08-30 13:44:39.000000
                    [timezone_type] => 3
                    [timezone] => America/Chicago
                )

            [date_modified] => WC_DateTime Object
                (
                    [utc_offset:protected] => 0
                    [date] => 2024-07-09 15:15:52.000000
                    [timezone_type] => 3
                    [timezone] => America/Chicago
                )

            [status] => publish
            [featured] =>
            [catalog_visibility] => visible
            [description] =>

Harman & Heatilator Combustion Paddle

Top quality Harman & Heatilator Eco-Choice replacement combustion fan blower paddle blade. Also referred to as the exhaust motor impeller or motor blade, this will be a 5″ diameter double paddle fan blade, part number replacement for 3-20-502221. When removing the combustion fan motor for cleaning or replacement, the paddle impeller blade must be removed. In some cases, the paddle can be simply removed by loosening the allen set screw that holds the impeller to the motor shaft. In other cases, this paddle can forge itself to the motor shaft not allowing the allen set screw to be loosened. If the paddle impeller will not come off, the best option is to fold the impeller fins inward and use a Dremel tool with a cut-off wheel to cut the motor shaft so it can be removed. We do recommend routine inspection and cleaning ash off the fan paddle during routine maintenance. This paddle will be correct for the Harman Accentra 52i, Accentra 52i-TC, Advance, HydroFlex 60, Invincible Insert, Invincible RS, P38, P43, P61, P61A, P68, PB105, PF100, XXV, 44 Magnum, DVC 500, and Mark I models. This will also be correct for Heatilator Eco-Choice BA100, BH105, and BH60 models. Please see our model notes for full details. 5" Double Paddle Fan Blade Impeller Guaranteed Newest Stock Inventory 90 Day Manufacturer Warranty

Why Choose Pellethead?



On-Time Shipping

USA Retail Locations

Unmatched Warranty – No Hassles

Live Tech Support

We have over a 99.5% on-time shipment rate. Get your products on-time or before the estimated delivery date. We are not fly by night online Retailers that will be here today and gone tomorrow. We stand behind every product we sell with our no hassle warranty. We offer tech support for every single product we sell. Have an issue, have a question? No problem give us a ring.

Experienced

Quality Affordable Parts

Pellethead Ash Vault Pro

Pellethead Smokin Po Boy

We have been in business 30 years, we are pellet stove specialists. Period. We service our customers stoves, and provide you with the same quality parts. Check out the only ash vacuum made by pellet stove professionals in a corded and cordless option. Want to cook pizza in 3 minutes? Check out the Pellethead Smokin Po Boy.
[short_description] => Top Quality Harman & Heatilator Eco-Choice 5" Double Paddle Fan Impeller for the Combustion Exhaust Fan Motor. Guaranteed Best Price and Fastest Shipping! [sku] => 3-20-502221 | AMP-502221 [price] => 14 [regular_price] => 14 [sale_price] => [date_on_sale_from] => [date_on_sale_to] => [total_sales] => 206 [tax_status] => taxable [tax_class] => [manage_stock] => 1 [stock_quantity] => 228 [stock_status] => instock [backorders] => no [low_stock_amount] => [sold_individually] => [weight] => 0.6 [length] => 6 [width] => 6 [height] => 4 [upsell_ids] => Array ( [0] => 41488 [1] => 41463 [2] => 45380 [3] => 41467 [4] => 41464 [5] => 41476 ) [cross_sell_ids] => Array ( [0] => 41494 [1] => 41493 [2] => 41483 [3] => 41502 [4] => 41491 [5] => 41478 ) [parent_id] => 0 [reviews_allowed] => [purchase_note] => [attributes] => Array ( [size] => WC_Product_Attribute Object ( [data:protected] => Array ( [id] => 0 [name] => Size [options] => Array ( [0] => 5" Diameter Double Paddle Fan Bladed Impeller. Designed to fit on 5/16" Diameter Motor Shafts. Easy Installation; Set Screw Included. ) [position] => 0 [visible] => 1 [variation] => ) ) ) [default_attributes] => Array ( ) [menu_order] => 480 [post_password] => [virtual] => [downloadable] => [category_ids] => Array ( [0] => 79 [1] => 63722 [2] => 63723 [3] => 63725 [4] => 64321 [5] => 66643 [6] => 65375 [7] => 65383 ) [tag_ids] => Array ( [0] => 733 [1] => 734 [2] => 735 [3] => 736 [4] => 737 [5] => 738 [6] => 739 [7] => 740 [8] => 741 [9] => 742 [10] => 743 [11] => 744 [12] => 745 [13] => 746 [14] => 747 [15] => 748 [16] => 69810 [17] => 69793 [18] => 749 [19] => 69792 [20] => 750 [21] => 69791 [22] => 751 [23] => 69794 [24] => 69795 [25] => 69799 [26] => 69796 [27] => 69818 [28] => 752 [29] => 753 [30] => 69811 [31] => 754 [32] => 69797 [33] => 69798 [34] => 69800 [35] => 69801 [36] => 69812 [37] => 69802 [38] => 69803 [39] => 69804 [40] => 69805 [41] => 69806 [42] => 755 [43] => 69807 [44] => 69821 [45] => 69820 [46] => 69819 [47] => 69808 [48] => 69809 [49] => 69813 [50] => 69814 [51] => 69815 [52] => 69817 [53] => 69816 [54] => 756 [55] => 757 [56] => 758 [57] => 759 [58] => 38971 [59] => 38972 [60] => 38974 [61] => 38973 [62] => 38970 [63] => 760 [64] => 761 [65] => 762 [66] => 763 [67] => 764 [68] => 765 [69] => 766 [70] => 767 [71] => 769 [72] => 770 ) [shipping_class_id] => 0 [downloads] => Array ( ) [image_id] => 155966 [gallery_image_ids] => Array ( [0] => 108328 [1] => 108329 [2] => 155967 [3] => 155966 ) [download_limit] => 0 [download_expiry] => 0 [rating_counts] => Array ( ) [average_rating] => 0 [review_count] => 0 ) [supports:protected] => Array ( [0] => ajax_add_to_cart ) [id:protected] => 41470 [changes:protected] => Array ( ) [object_read:protected] => 1 [extra_data:protected] => Array ( ) [default_data:protected] => Array ( [name] => [slug] => [date_created] => [date_modified] => [status] => [featured] => [catalog_visibility] => visible [description] => [short_description] => [sku] => [price] => [regular_price] => [sale_price] => [date_on_sale_from] => [date_on_sale_to] => [total_sales] => 0 [tax_status] => taxable [tax_class] => [manage_stock] => [stock_quantity] => [stock_status] => instock [backorders] => no [low_stock_amount] => [sold_individually] => [weight] => [length] => [width] => [height] => [upsell_ids] => Array ( ) [cross_sell_ids] => Array ( ) [parent_id] => 0 [reviews_allowed] => 1 [purchase_note] => [attributes] => Array ( ) [default_attributes] => Array ( ) [menu_order] => 0 [post_password] => [virtual] => [downloadable] => [category_ids] => Array ( ) [tag_ids] => Array ( ) [shipping_class_id] => 0 [downloads] => Array ( ) [image_id] => [gallery_image_ids] => Array ( ) [download_limit] => -1 [download_expiry] => -1 [rating_counts] => Array ( ) [average_rating] => 0 [review_count] => 0 ) [data_store:protected] => WC_Data_Store Object ( [instance:WC_Data_Store:private] => WC_Product_Data_Store_CPT Object ( [internal_meta_keys:protected] => Array ( [0] => _visibility [1] => _sku [2] => _price [3] => _regular_price [4] => _sale_price [5] => _sale_price_dates_from [6] => _sale_price_dates_to [7] => total_sales [8] => _tax_status [9] => _tax_class [10] => _manage_stock [11] => _stock [12] => _stock_status [13] => _backorders [14] => _low_stock_amount [15] => _sold_individually [16] => _weight [17] => _length [18] => _width [19] => _height [20] => _upsell_ids [21] => _crosssell_ids [22] => _purchase_note [23] => _default_attributes [24] => _product_attributes [25] => _virtual [26] => _downloadable [27] => _download_limit [28] => _download_expiry [29] => _featured [30] => _downloadable_files [31] => _wc_rating_count [32] => _wc_average_rating [33] => _wc_review_count [34] => _variation_description [35] => _thumbnail_id [36] => _file_paths [37] => _product_image_gallery [38] => _product_version [39] => _wp_old_slug [40] => _edit_last [41] => _edit_lock ) [must_exist_meta_keys:protected] => Array ( [0] => _tax_class ) [extra_data_saved:protected] => [updated_props:protected] => Array ( ) [meta_type:protected] => post [object_id_field_for_meta:protected] => ) [stores:WC_Data_Store:private] => Array ( [coupon] => WC_Coupon_Data_Store_CPT [customer] => WC_Customer_Data_Store [customer-download] => WC_Customer_Download_Data_Store [customer-download-log] => WC_Customer_Download_Log_Data_Store [customer-session] => WC_Customer_Data_Store_Session [order] => WC_Order_Data_Store_CPT [order-refund] => WC_Order_Refund_Data_Store_CPT [order-item] => WC_Order_Item_Data_Store [order-item-coupon] => WC_Order_Item_Coupon_Data_Store [order-item-fee] => WC_Order_Item_Fee_Data_Store [order-item-product] => WC_Order_Item_Product_Data_Store [order-item-shipping] => WC_Order_Item_Shipping_Data_Store [order-item-tax] => WC_Order_Item_Tax_Data_Store [payment-token] => WC_Payment_Token_Data_Store [product] => WC_Product_Data_Store_CPT [product-grouped] => WC_Product_Grouped_Data_Store_CPT [product-variable] => WC_Product_Variable_Data_Store_CPT [product-variation] => WC_Product_Variation_Data_Store_CPT [shipping-zone] => WC_Shipping_Zone_Data_Store [webhook] => WC_Webhook_Data_Store [report-revenue-stats] => Automattic\WooCommerce\Admin\API\Reports\Orders\Stats\DataStore [report-orders] => Automattic\WooCommerce\Admin\API\Reports\Orders\DataStore [report-orders-stats] => Automattic\WooCommerce\Admin\API\Reports\Orders\Stats\DataStore [report-products] => Automattic\WooCommerce\Admin\API\Reports\Products\DataStore [report-variations] => Automattic\WooCommerce\Admin\API\Reports\Variations\DataStore [report-products-stats] => Automattic\WooCommerce\Admin\API\Reports\Products\Stats\DataStore [report-variations-stats] => Automattic\WooCommerce\Admin\API\Reports\Variations\Stats\DataStore [report-categories] => Automattic\WooCommerce\Admin\API\Reports\Categories\DataStore [report-taxes] => Automattic\WooCommerce\Admin\API\Reports\Taxes\DataStore [report-taxes-stats] => Automattic\WooCommerce\Admin\API\Reports\Taxes\Stats\DataStore [report-coupons] => Automattic\WooCommerce\Admin\API\Reports\Coupons\DataStore [report-coupons-stats] => Automattic\WooCommerce\Admin\API\Reports\Coupons\Stats\DataStore [report-downloads] => Automattic\WooCommerce\Admin\API\Reports\Downloads\DataStore [report-downloads-stats] => Automattic\WooCommerce\Admin\API\Reports\Downloads\Stats\DataStore [admin-note] => Automattic\WooCommerce\Admin\Notes\DataStore [report-customers] => Automattic\WooCommerce\Admin\API\Reports\Customers\DataStore [report-customers-stats] => Automattic\WooCommerce\Admin\API\Reports\Customers\Stats\DataStore [report-stock-stats] => Automattic\WooCommerce\Admin\API\Reports\Stock\Stats\DataStore ) [current_class_name:WC_Data_Store:private] => WC_Product_Data_Store_CPT [object_type:WC_Data_Store:private] => product-simple ) [meta_data:protected] => )

Description

Harman & Heatilator Combustion Paddle

Top quality Harman & Heatilator Eco-Choice replacement combustion fan blower paddle blade. Also referred to as the exhaust motor impeller or motor blade, this will be a 5″ diameter double paddle fan blade, part number replacement for 3-20-502221. When removing the combustion fan motor for cleaning or replacement, the paddle impeller blade must be removed. In some cases, the paddle can be simply removed by loosening the allen set screw that holds the impeller to the motor shaft. In other cases, this paddle can forge itself to the motor shaft not allowing the allen set screw to be loosened. If the paddle impeller will not come off, the best option is to fold the impeller fins inward and use a Dremel tool with a cut-off wheel to cut the motor shaft so it can be removed. We do recommend routine inspection and cleaning ash off the fan paddle during routine maintenance.

This paddle will be correct for the Harman Accentra 52i, Accentra 52i-TC, Advance, HydroFlex 60, Invincible Insert, Invincible RS, P38, P43, P61, P61A, P68, PB105, PF100, XXV, 44 Magnum, DVC 500, and Mark I models. This will also be correct for Heatilator Eco-Choice BA100, BH105, and BH60 models. Please see our model notes for full details.

5″ Double Paddle Fan Blade Impeller

Guaranteed Newest Stock Inventory

90 Day Manufacturer Warranty

Why Choose Pellethead?



On-Time Shipping

USA Retail Locations

Unmatched Warranty – No Hassles

Live Tech Support

We have over a 99.5% on-time shipment rate. Get your products on-time or before the estimated delivery date. We are not fly by night online Retailers that will be here today and gone tomorrow. We stand behind every product we sell with our no hassle warranty. We offer tech support for every single product we sell. Have an issue, have a question? No problem give us a ring.

Experienced

Quality Affordable Parts

Pellethead Ash Vault Pro

Pellethead Smokin Po Boy

We have been in business 30 years, we are pellet stove specialists. Period. We service our customers stoves, and provide you with the same quality parts. Check out the only ash vacuum made by pellet stove professionals in a corded and cordless option. Want to cook pizza in 3 minutes? Check out the Pellethead Smokin Po Boy.

Specs

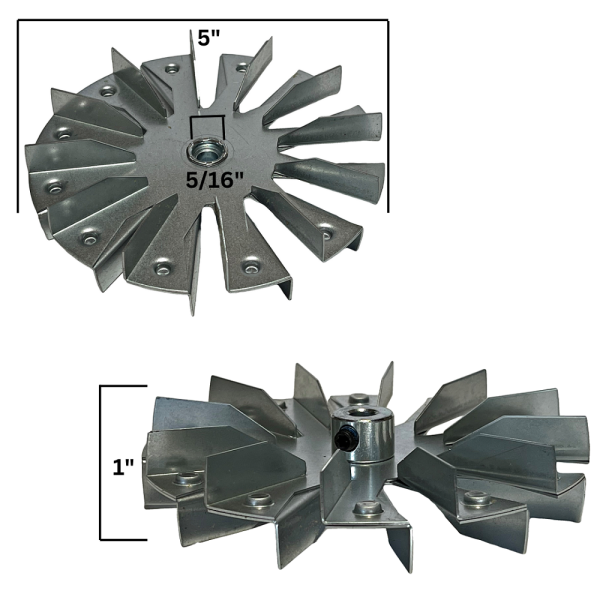

Size 5" Diameter Double Paddle Fan Bladed Impeller. Designed to fit on 5/16" Diameter Motor Shafts. Easy Installation; Set Screw Included.

Models

Model Notes

  • Harman PF100 – High Altitude Installations
  • BA100 – High Altitude
  • DVC500 – New Style Draft Blower Only

Harman Pellet

  • Accentra 52I
  • Accentra 52i-TC
  • Advance
  • HydroFlex 60 (HF60) Boiler
  • Invincible Insert
  • Invincible RS
  • P38 (P38+, PP38+)
  • P43
  • P61
  • P61A
  • P68
  • PB105 Boiler
  • PF100 Furnace
  • XXV (25th Anniversary Model)

Harman Wood & Coal

  • 44 Magnum
  • DVC 500
  • Mark I

Heatilator Pellet

  • BA100
  • BH105
  • BH60

Our Guarantee:

  • 100% Best Price Guarantee
  • 100% Satisfaction Guarantee
  • 100% On-Time Shipping Commitment
  • Returns accepted within 30 days on products not used or installed

Over 30 years of trusted value and commitment to customers.

Save. Green.
